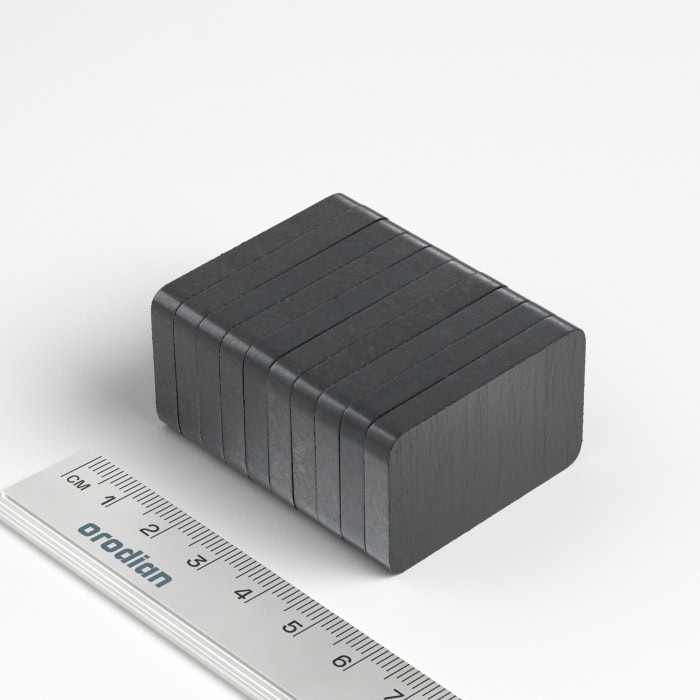

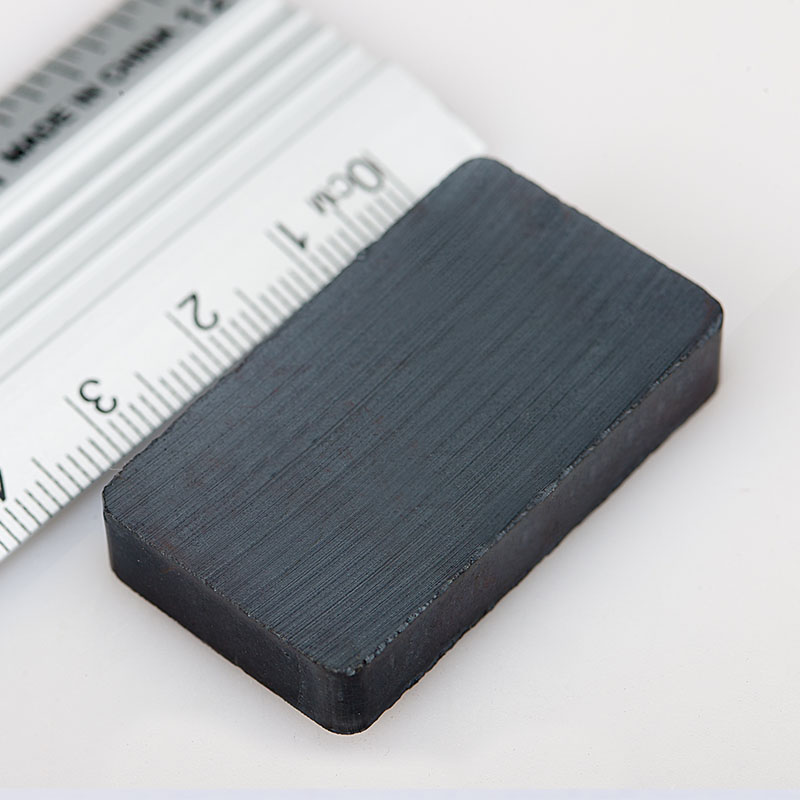

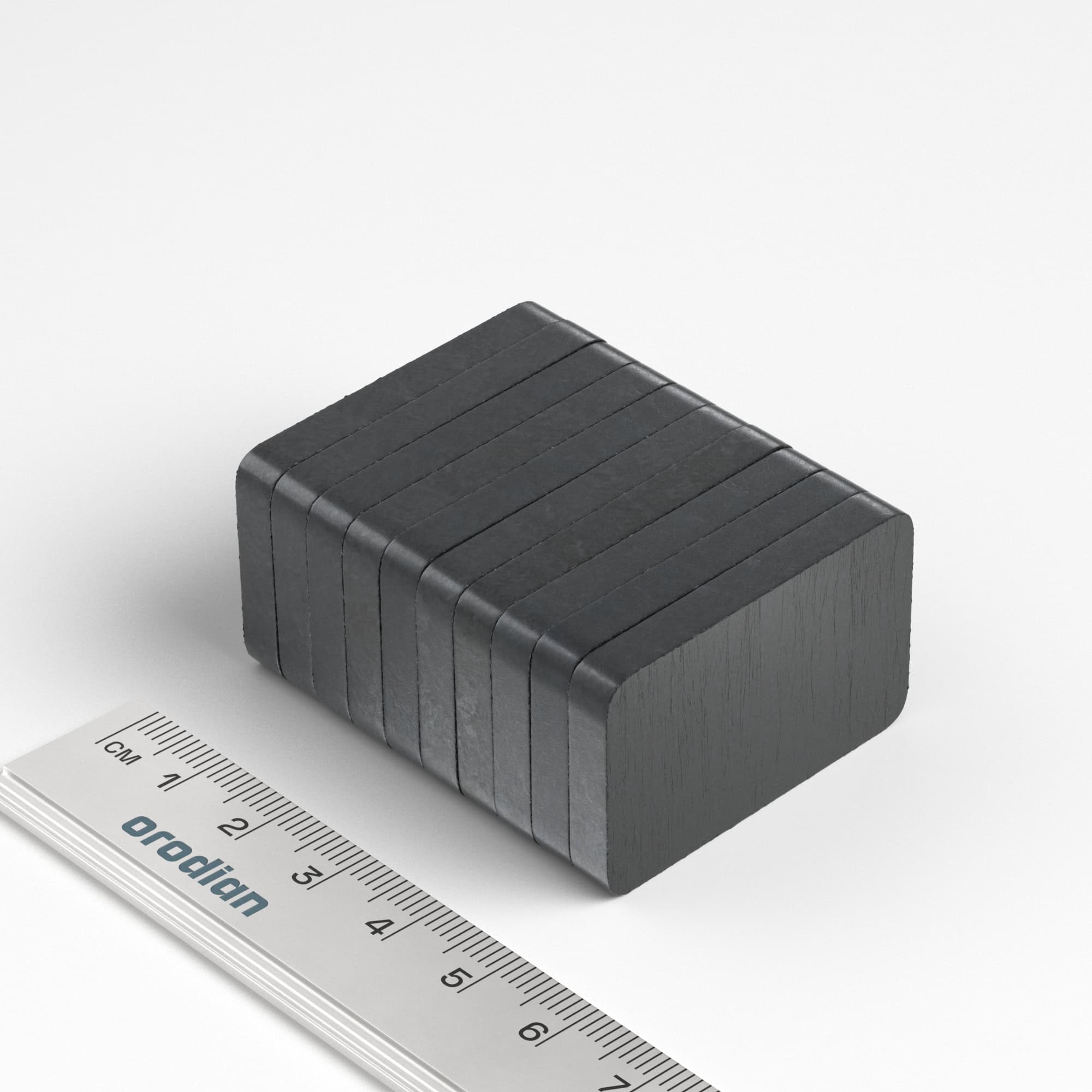

Ferrite magnet, block, 40x25x5 mm - Y30BH

Ferrite magnet, block, 40×25×5 mm – Y30BH

0,71€ inc. Vat

Quantity discounts

From 1 pc:	0,71€
From 40 pcs:	0,59€
From 80 pcs:	0,52€
From 160 pcs:	0,48€
From 650 pcs:	Request a quote

In stock: 17879 pcs

SKU: K40-25-5-Y30BH Category: Ferrite magnets - blocks Tags: Low-cost magnets, Magnets with high temperature resistance, Waterproof magnets

Properties

Length	40 mm
Width	25 mm
Height	5 mm
Magnetic strength	1,1 kg
Magnetisation direction	in the direction of thickness (shortest dimension)
Material	Y30BH (ferrite magnet)
Temperature resistance	up to 250 °C
Weight	24 g

Product description

The ferrite magnet in the shape of a block is made of Fe₂O₃. This type of magnet is the weakest of all the magnets in our range. In many cases, however, even this strength is sufficient.

As the magnet will not rust in a humid environment, it is suitable for outdoor use. It is less brittle than stronger neodymium magnets (it does not break in collisions). It does not lose its magnetic strength even at very high temperatures.

Warning: Never bring ferrite magnets closer than 5 cm to neodymium magnets. Neodymium magnets create a very strong magnetic field that can demagnetise a ferrite magnet. The ferrite magnet would thus lose much of its power.

If you need the strongest magnet possible, we recommend using neodymium magnets instead of this magnet, which are up to 10 times stronger.

We also offer other ferrites.
