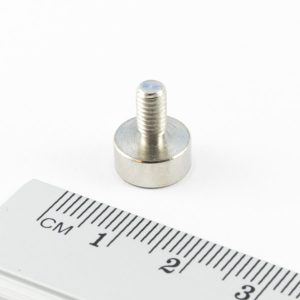

Pot magnet with threaded stud, 10×4.5 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
Pot magnets with threaded stud
Diameter mm
Height with thread mm
Magnetic strength kg
-
Pot magnet with threaded stud, 10×4.5 mm
Strength: 3 kg (N38)
Thread: M4
From 1 pcs: 1,14€ From 20 pcs: 0,93€ From 50 pcs: 0,85€ From 100 pcs: 0,78€ Ask from 500 pcs.
-

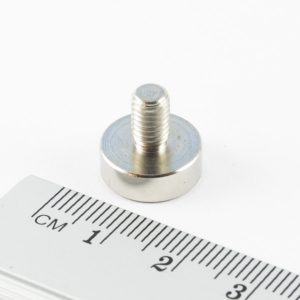

Pot magnet with threaded stud, 13×4.5 mm
Strength: 3.5 kg (N38)
Thread: M5
From 1 pcs: 1,51€ From 20 pcs: 1,25€ From 50 pcs: 1,12€ From 100 pcs: 1,03€ Ask from 500 pcs.
Pot magnet with threaded stud, 13×4.5 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-
Pot magnet with threaded stud, 16×4.5 mm, M5
Strength: 10 kg (N38)
Thread: M5
From 1 pcs: 1,79€ From 20 pcs: 1,50€ From 50 pcs: 1,33€ From 100 pcs: 1,22€ Ask from 500 pcs.
Pot magnet with threaded stud, 16×4.5 mm, M5
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

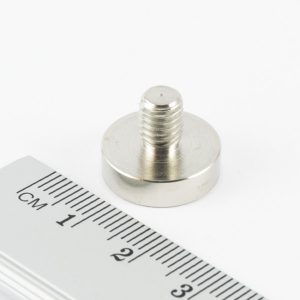

Pot magnet with threaded stud, 16×4.5 mm, M6
Strength: 10 kg (N38)
Thread: M6From 1 pcs: 1,79€ From 20 pcs: 1,50€ From 50 pcs: 1,33€ From 100 pcs: 1,22€ Ask from 500 pcs.
Pot magnet with threaded stud, 16×4.5 mm, M6
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

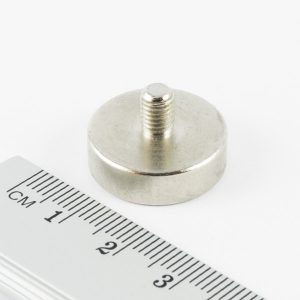

Pot magnet with threaded stud, 20×5 mm
Strength: 16 kg (N38)
Thread: M5
From 1 pcs: 3,04€ From 10 pcs: 2,56€ From 35 pcs: 2,27€ From 100 pcs: 2,06€ Ask from 300 pcs.
Pot magnet with threaded stud, 20×5 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

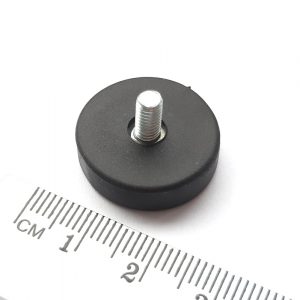

Pot magnet with threaded stud, 22×6 mm, rubber coated
Strength: 5.8 kg (N38)
Thread: M4
Pot magnet with threaded stud, 22×6 mm, rubber coated
Strength: 5.8 kg (N38)
Thread: M42.466 in stockFrom 1 pcs: 1,79€ From 10 pcs: 1,59€ From 30 pcs: 1,39€ From 80 pcs: 1,29€ Ask from 300 pcs.
Pot magnet with threaded stud, 22×6 mm, rubber coated
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect the materials it is used on and also to increase the magnet’s shear strength due to…
-

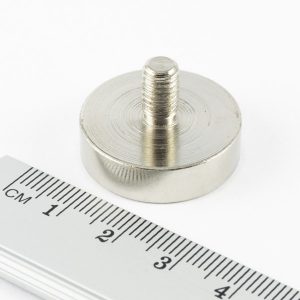

Pot magnet with threaded stud, 25×7 mm
Strength: 27 kg (N38)
Thread: M6
From 1 pcs: 3,48€ From 10 pcs: 2,93€ From 35 pcs: 2,60€ From 100 pcs: 2,36€ Ask from 300 pcs.
Pot magnet with threaded stud, 25×7 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

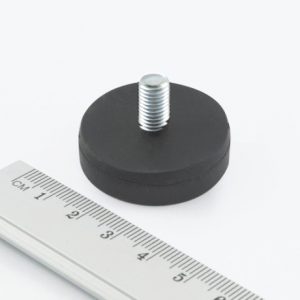

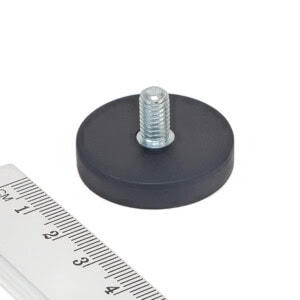

Pot magnet with threaded stud, 31×6 mm, rubber coated, M6
Strength: 7.5 kg (N38)
Thread: M6
Pot magnet with threaded stud, 31×6 mm, rubber coated, M6
Strength: 7.5 kg (N38)
Thread: M61.143 in stockFrom 1 pcs: 2,65€ From 5 pcs: 2,34€ From 20 pcs: 2,09€ From 50 pcs: 1,96€ Ask from 200 pcs.
Pot magnet with threaded stud, 31×6 mm, rubber coated, M6
The magnet height is 6 mm, the total height including the threaded section is 17 mm. The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect…
-

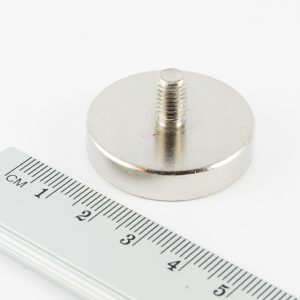

Pot magnet with threaded stud, 32×7 mm
Strength: 45 kg (N38)
Thread: M6
From 1 pcs: 4,74€ From 5 pcs: 4,13€ From 20 pcs: 3,68€ From 50 pcs: 3,41€ Ask from 200 pcs.
Pot magnet with threaded stud, 32×7 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

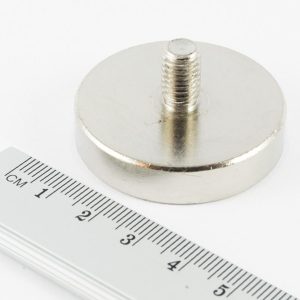

Pot magnet with threaded stud, 40×8.5 mm
Strength: 60 kg (N38)
Thread: M8
From 1 pcs: 7,99€ From 2 pcs: 7,09€ From 5 pcs: 6,39€ From 20 pcs: 5,90€ Ask from 70 pcs.
Pot magnet with threaded stud, 40×8.5 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

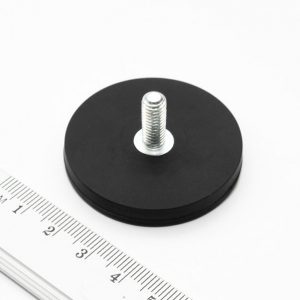

Pot magnet with threaded stud, 43×6 mm, rubber coated, M6
Strength: 10 kg (N38)
Thread: M6
Pot magnet with threaded stud, 43×6 mm, rubber coated, M6
Strength: 10 kg (N38)
Thread: M6322 in stockFrom 1 pcs: 3,36€ From 5 pcs: 2,99€ From 15 pcs: 2,69€ From 40 pcs: 2,49€ Ask from 160 pcs.
Pot magnet with threaded stud, 43×6 mm, rubber coated, M6
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect the materials it is used on and also to increase the magnet’s shear strength due to…
-
Pot magnet with threaded stud, 43×6 mm, rubber coated, M8
Strength: 10 kg (N38)
Thread: M8
Pot magnet with threaded stud, 43×6 mm, rubber coated, M8
Strength: 10 kg (N38)
Thread: M83.916 in stockFrom 1 pcs: 3,36€ From 5 pcs: 2,99€ From 15 pcs: 2,69€ From 40 pcs: 2,49€ Ask from 160 pcs.
Pot magnet with threaded stud, 43×6 mm, rubber coated, M8
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect the materials it is used on and also to increase the magnet’s shear strength due to…
-

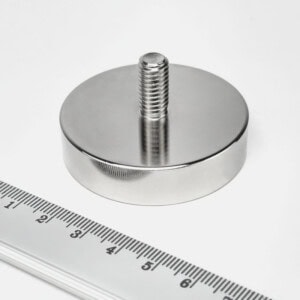

Pot magnet with threaded stud, 48×11.5 mm
Strength: 103 kg (N38)
Thread: M8
From 1 pcs: 14,99€ From 2 pcs: 13,29€ From 3 pcs: 11,99€ From 10 pcs: 11,39€ Ask from 40 pcs.
Pot magnet with threaded stud, 48×11.5 mm
The height of the steel pot without the thread is 11.5 mm. The total height, including the thread, is 27 mm. The inner magnet is made of NdFeB, the strongest magnetic material in the world. It is set in a steel casing, which protects the magnet from damage and simultaneously enhances its overall magnetic strength.
-

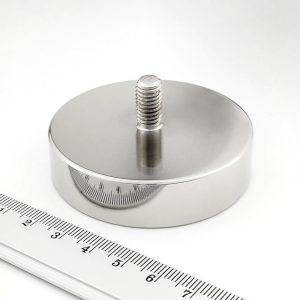

Pot magnet with threaded stud, 60×15 mm
Strength: 148 kg (N38)
Thread: M8
From 1 pcs: 24,39€ From 2 pcs: 21,90€ From 3 pcs: 19,90€ From 5 pcs: 18,90€ Ask from 20 pcs.
Pot magnet with threaded stud, 60×15 mm
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
-

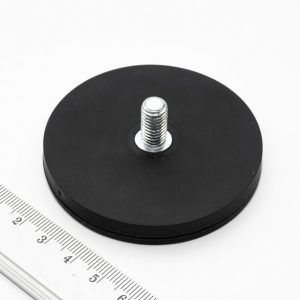

Pot magnet with threaded stud, 66×8.5 mm, rubber coated
Strength: 25 kg (N38)
Thread: M8
Pot magnet with threaded stud, 66×8.5 mm, rubber coated
Strength: 25 kg (N38)
Thread: M81.564 in stockFrom 1 pcs: 7,39€ From 2 pcs: 6,55€ From 10 pcs: 5,89€ From 20 pcs: 5,49€ Ask from 70 pcs.
Pot magnet with threaded stud, 66×8.5 mm, rubber coated
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect the materials it is used on and also to increase the magnet’s shear strength due to…
-

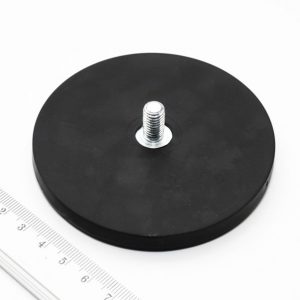

Pot magnet with threaded stud, 88×8.5 mm, rubber coated
Strength: 55 kg (N38)
Thread: M8
From 1 pcs: 9,99€ From 2 pcs: 8,99€ From 5 pcs: 8,13€ From 15 pcs: 7,57€ Ask from 50 pcs.
Pot magnet with threaded stud, 88×8.5 mm, rubber coated
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength. Finally, the magnet is rubber coated to protect the materials it is used on and also to increase the magnet’s shear strength due to…
Showing 16 of 16 products

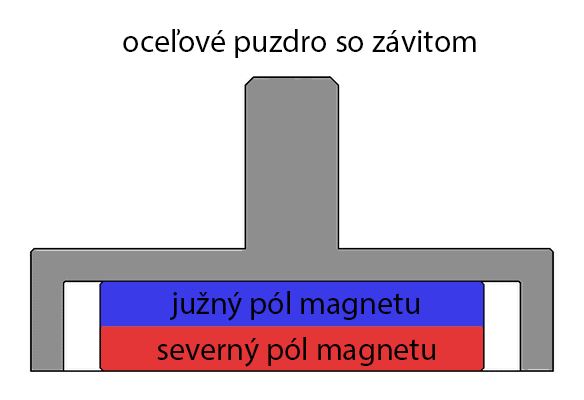

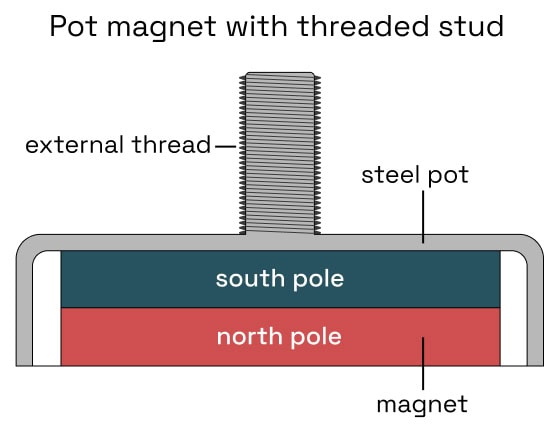

Magnetisation direction
Our threaded pot magnets have a north pole on the exposed side. The same magnetic poles repel each other, so if you place two pot magnets face down together, they will repel each other. If you need the magnets to attract each other, use a combination of a pot magnet + a steel counterpart instead of two magnets. Since opposites are not magnets but contain iron, they are always attracted to magnets and never repelled.
How strong a magnet do I need?
The strength stated for magnets is required to tear the magnet away from a steel object at least as thick as the magnet. You must pull directly away from the magnet. It is much easier to slide a magnet from a metal surface than to pull it off directly. The strength required to move the magnet to the side along the metal surface is approximately 3 times smaller than the strength required to tear it away from the surface, which we mention for magnets.
If the attracted object is not made of pure steel or does not touch the magnet with its entire surface, the strength can be significantly lower. We recommend planning for a large margin and ordering stronger magnets.
If you need advice on choosing, contact us at info@orodian.com or call +421 46 202 1200.
