Ferrite magnet, ring, 30-9×8 mm – Y30BH
1,59€ inc. Vat

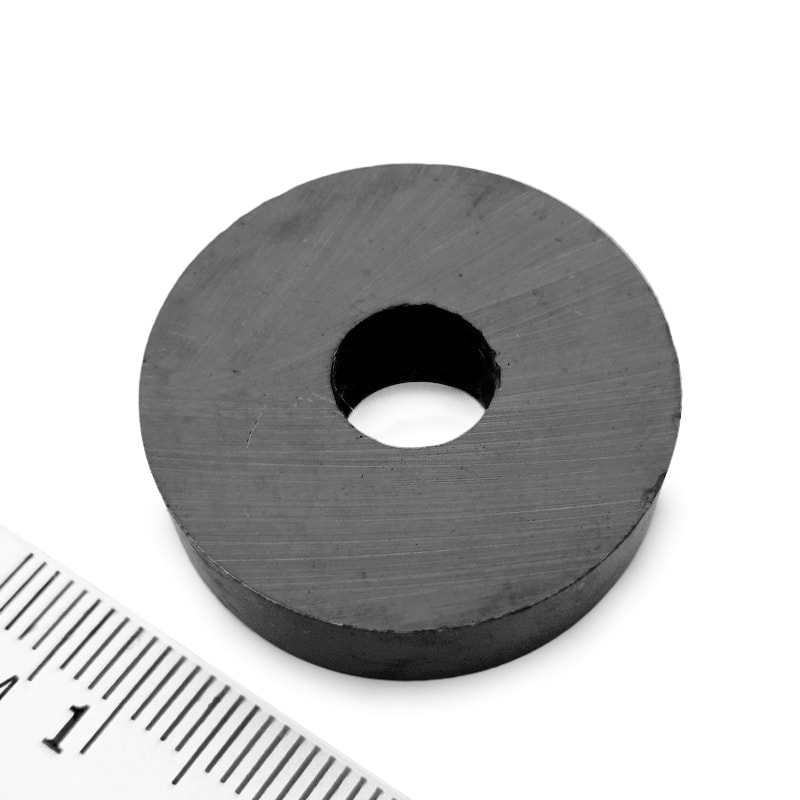

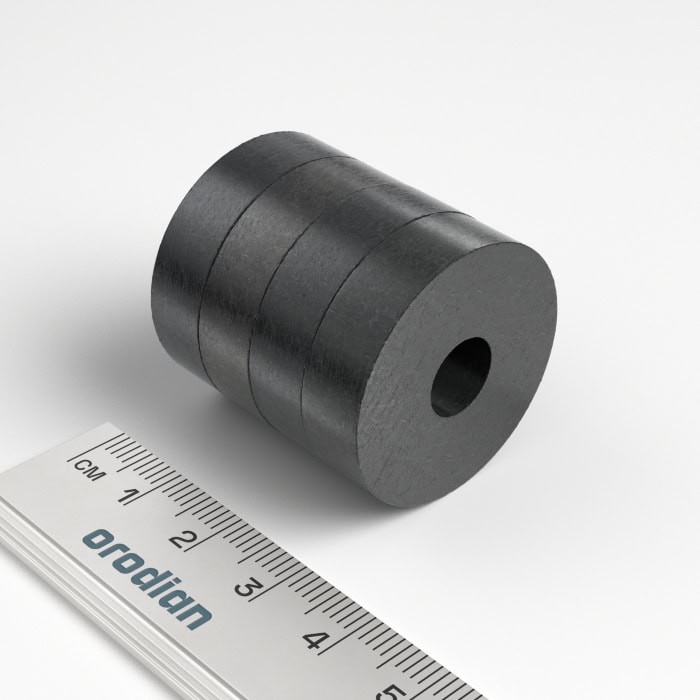

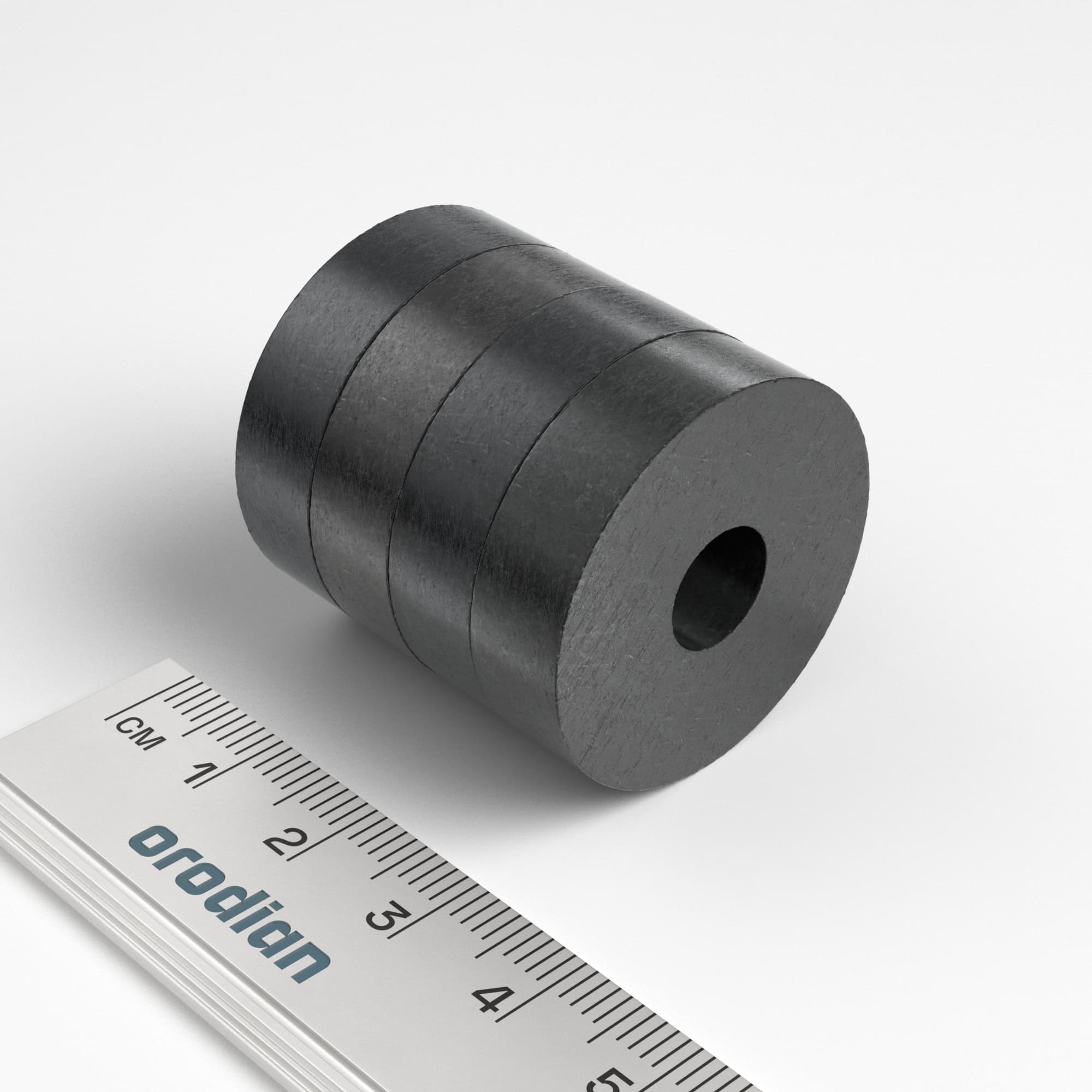

Ferrite magnet – 8 mm high disc with diameter of 30 mm and centre hole with diameter of 9 mm.
Properties
| Diameter | 30 mm |
|---|---|
| Inner diameter | 9 mm |
| Height | 8 mm |
| Hole size | 9 mm |
| Magnetic strength | 1,1 kg |
| Magnetisation direction | axial (parallel to height) |
| Material | Y30BH (ferrite magnet) |
| Temperature resistance | up to 250 °C |
| Weight | 24 g |
Product description
The ring-shaped ferrite magnet is made of Fe2O3. This type of magnet is the weakest of all the magnets in our range. In many cases, however, even this strength is sufficient.
As the magnet will not rust in a humid environment, it is suitable for outdoor use. It is less brittle than stronger neodymium magnets (it does not break in collisions). It does not lose its magnetic strength even at very high temperatures.
Warning: Never bring ferrite magnets closer than 5 cm to neodymium magnets. Neodymium magnets create a very strong magnetic field that can demagnetise a ferrite magnet. The ferrite magnet would thus lose much of its power.
If you need the strongest magnet possible, we recommend using neodymium magnets instead of this magnet, which are up to 10 times stronger.
We also offer other ferrites.
You might also like:
-
Pot magnet with screw hole 16×5 mm (SmCo)
Strength: 3.5 kg
Hole: M3From 1 pc: 3,49€ From 10 pcs: 3,19€ From 30 pcs: 2,89€ From 100 pcs: 2,69€ Ask from 500 pcs.
6.090 skladom -
Ferrite magnet, disc, 20×5 mm – Y30BH
Strength: 0.7 kg (Y30BH)From 1 pc: 0,21€ From 40 pcs: 0,17€ From 80 pcs: 0,15€ From 160 pcs: 0,14€ Ask from 2000 pcs.
31.658 skladom -
Ferrite magnet, block, 30×20×10 mm – Y30BH
Strength: 1.9 kg (Y30BH)From 1 pc: 0,82€ From 40 pcs: 0,68€ From 80 pcs: 0,61€ From 160 pcs: 0,55€ Ask from 650 pcs.
2.544 skladom -

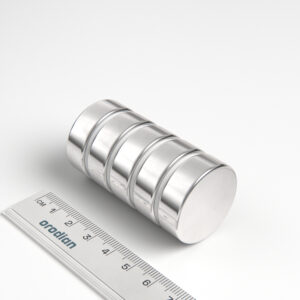

Neodymium magnet, disc, 30×10 mm – N38
