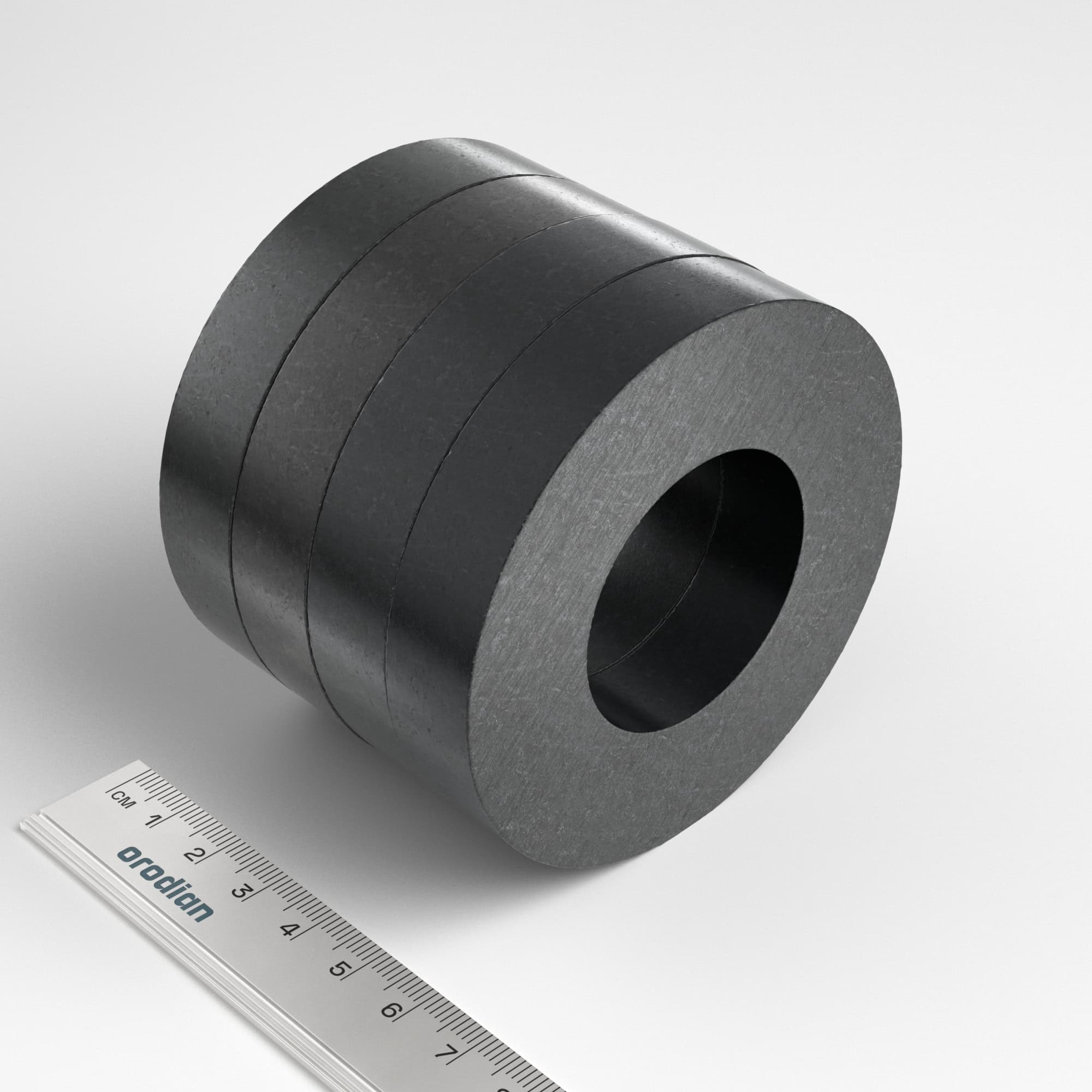

Ferrite magnet, ring, 80-40×15 mm – Y35

2,42€ inc. Vat

Ferrite magnet – 15 mm high ring with a diameter of 80 mm and a centre hole with a diameter of 40 mm.

Quantity discounts
From 1 pc:2,42€
From 10 pcs: 2,14€
From 20 pcs: 1,93€
From 60 pcs: 1,79€
From 220 pcs: Request a quote
In stock: 2201 pcs

SKU: R80-40X15-Y35 Category: Tags: ,

Properties

Diameter

80 mm
Inner diameter

40 mm
Height

15 mm
Hole size

40 mm
Magnetic strength

9,5 kg
Magnetisation direction

axial (parallel to height)
Material

Y35 (ferrite magnet)
Temperature resistance

up to 250 °C
Weight

270 g
15 mm 40 mm 80 mm

Product description

The ring-shaped ferrite magnet is made of Fe2O3. This type of magnet is the weakest of all the magnets in our range. In many cases, however, even this strength is sufficient.

As the magnet will not rust in a humid environment, it is suitable for outdoor use. It is less brittle than stronger neodymium magnets (it does not break in collisions). It does not lose its magnetic strength even at very high temperatures.

Warning: Never bring ferrite magnets closer than 5 cm to neodymium magnets. Neodymium magnets create a very strong magnetic field that can demagnetise a ferrite magnet. The ferrite magnet would thus lose much of its strength.

If you need the strongest magnet possible, we recommend using neodymium magnets instead of this magnet, which are up to 10 times stronger.

We also offer other ferrites.
