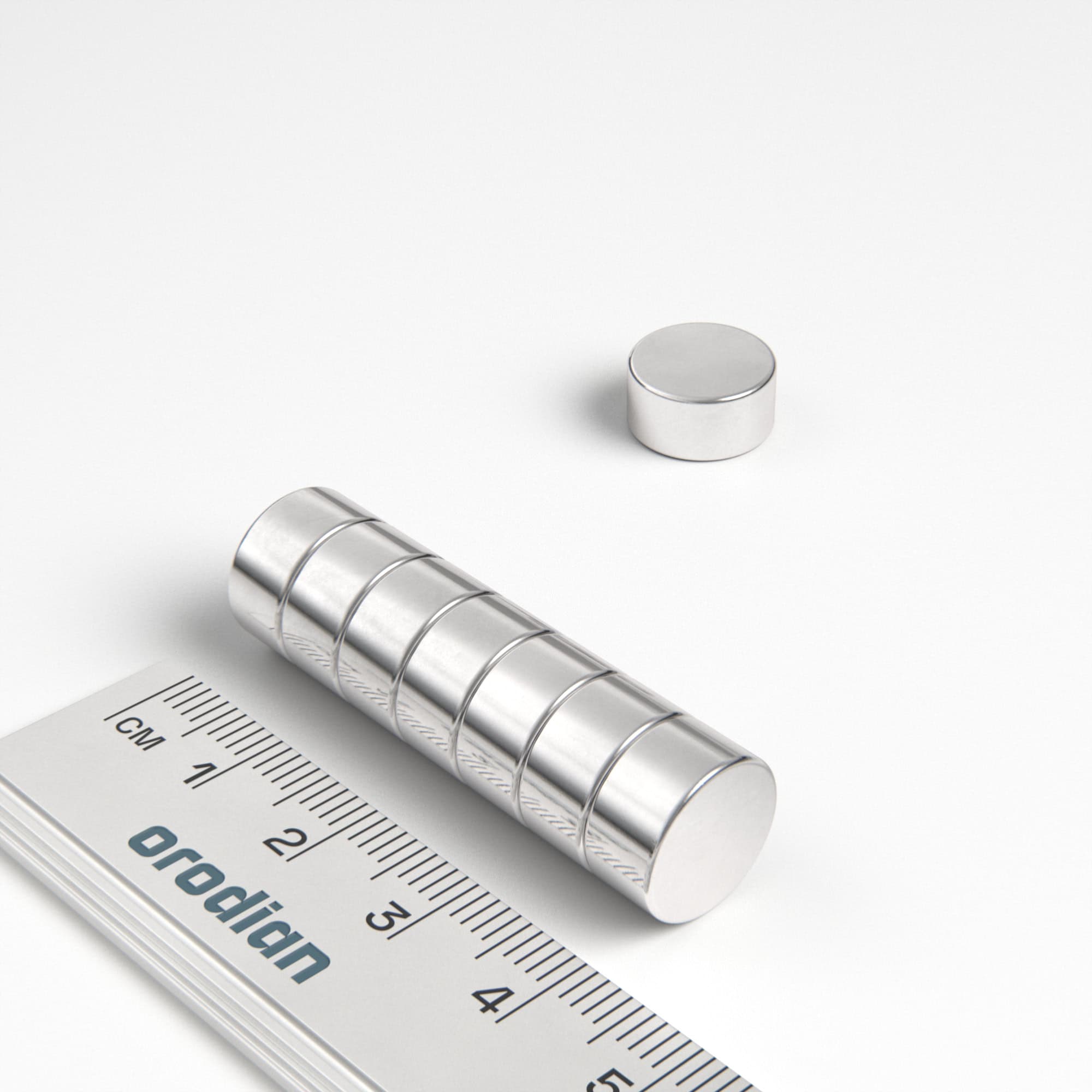

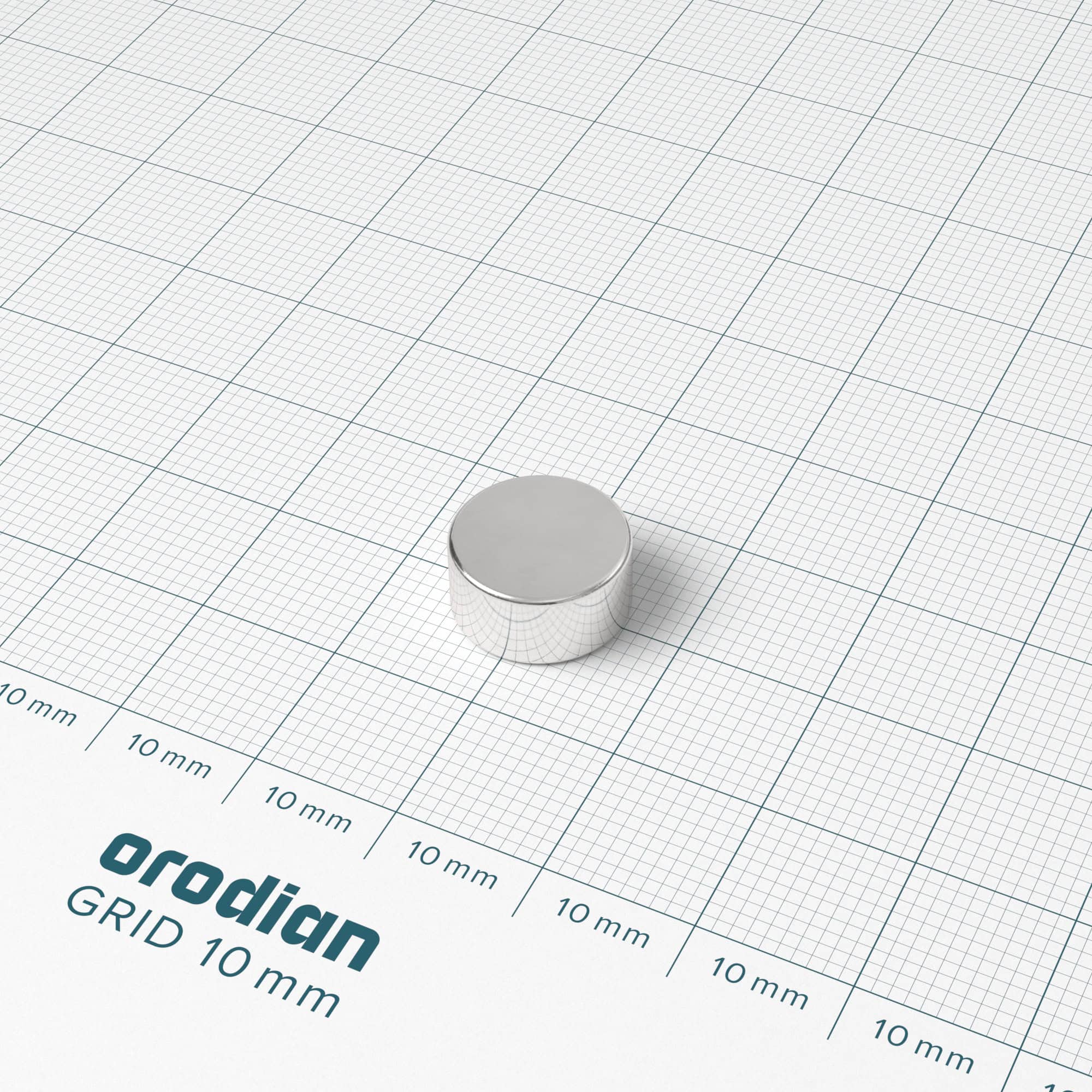

Neodymium magnet, disc, 12×6 mm – N38

0,89€ inc. Vat

Quantity discounts

From 1 pc:	0,89€
From 20 pcs:	0,79€
From 60 pcs:	0,69€
From 160 pcs:	0,65€
From 600 pcs:	Request a quote

In stock: 5590 pcs

SKU: V12-6-N38 Category: Neodymium magnets - discs Tag: Low-cost magnets

Properties

Diameter	12 mm
Height	6 mm
Magnetic strength	3,93 kg
Magnetisation direction	axial (parallel to height)
Material	NdFeB – N38 (neodymium magnet)
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	5 g

Product description

The magnet is made of the world's strongest magnetic material NdFeB. This material is up to 10 times stronger than conventional ferrite magnets.

The table above shows the strength of the magnet. This is the force required to pull the magnet away from a thick steel surface under the following ideal conditions:

The surface is made of pure steel and is at least half the thickness of the magnet itself.
The magnet touches the surface with the entire surface.
The magnet is pulled perpendicular to the surface (away from the surface).
There is no gap between the magnet and the metal surface (e.g. paint coating).

In most cases, these conditions are not met and the strength tends to be several times lower. For more information, see the article What is the strength of a magnet in kg?

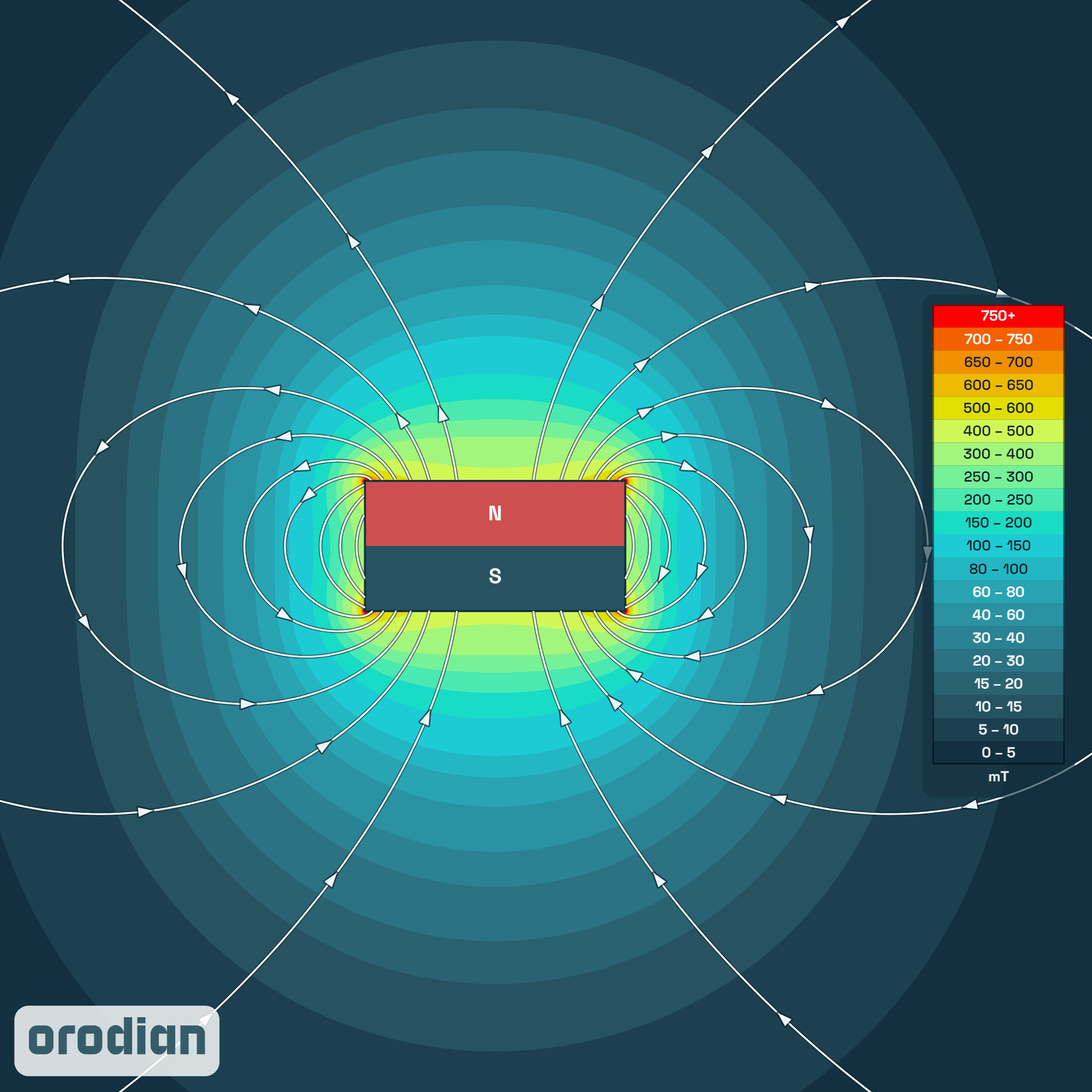

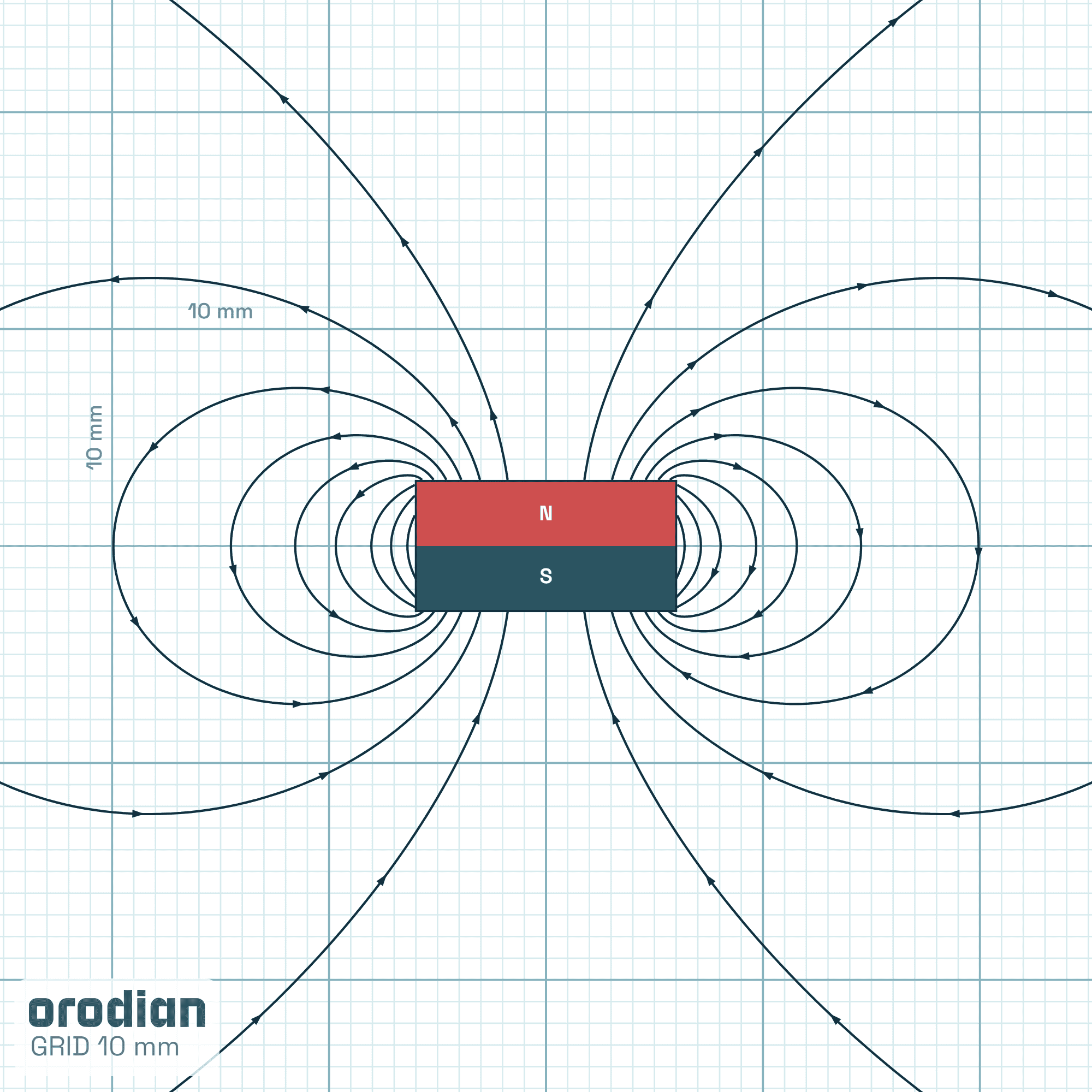

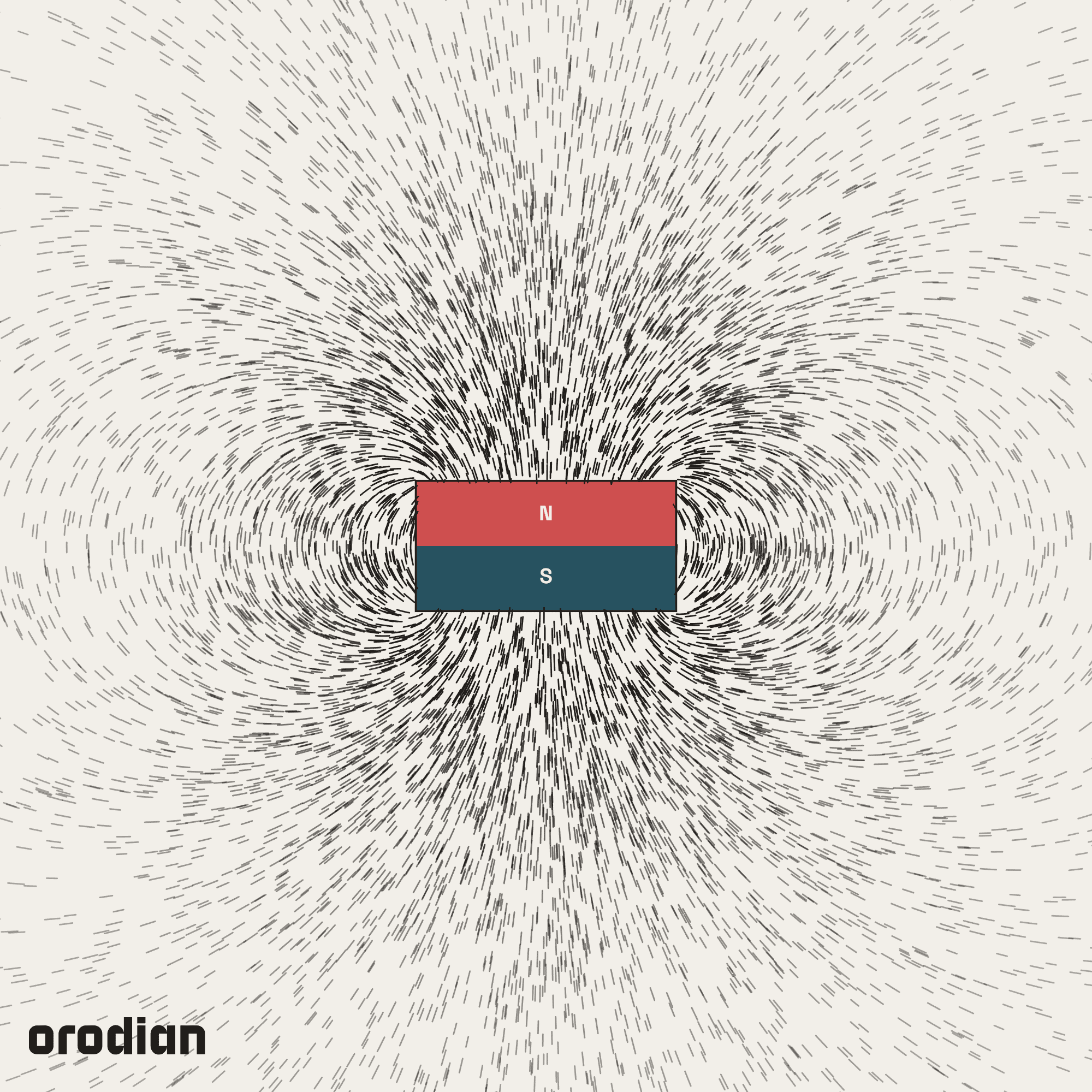

Magnetisation direction

The magnet is magnetised in the direction of the axis. This means that the poles of the magnet are located on the flat sides of the magnet.

If you put two magnets together with a flat side, they will either repel each other (same poles) or attract each other (opposite poles). Both sides of the magnet are attracted to objects made of iron, nickel, cobalt, steel or other ferromagnetic materials.

Brittleness

Although neodymium magnets look metallic, they are actually brittle and can break when hit:

If the magnets are going to be exposed to shocks, we recommend using our pot magnets instead of using this magnet. The steel pot is designed to protect the magnet from impacts.

Surface treatment

There are three layers of protection on the surface of the magnet: nickel, copper and nickel again. If damaged, the magnet may begin to oxidise and gradually lose strength. If the magnet is likely to be subjected to shock or severe scratching, we recommend using our pot magnets. The steel pot protects the magnet from impacts and scratches.

The nickel-copper-nickel finish is not moisture resistant and is not suitable for outdoor use. We recommend our waterproof magnets for use outdoors or in humid environments.

Drilling, sawing, welding...

Neodymium magnets are brittle, sensitive to high temperature and oxidize easily. The magnet may break when drilling or sawing with unsuitable tools. A magnet with a damaged surface finish may lose some of its strength over time. Therefore, we do not recommend mechanical processing of magnets. We can meet special requirements for the shape of magnets. For more information, visit Custom-made magnets.

High temperatures

Conventional neodymium magnets lose some of their strength when heated above 80 °C, and sometimes at lower temperatures. If you need a magnet with higher temperature resistance, see the category Magnets with high temperature resistance. The magnet is not affected by low temperatures.

Further information

For more information, see our FAQ page and our blog. You can calculate the pull-off force and magnetic field of any neodymium magnet with our magnetic calculator.
