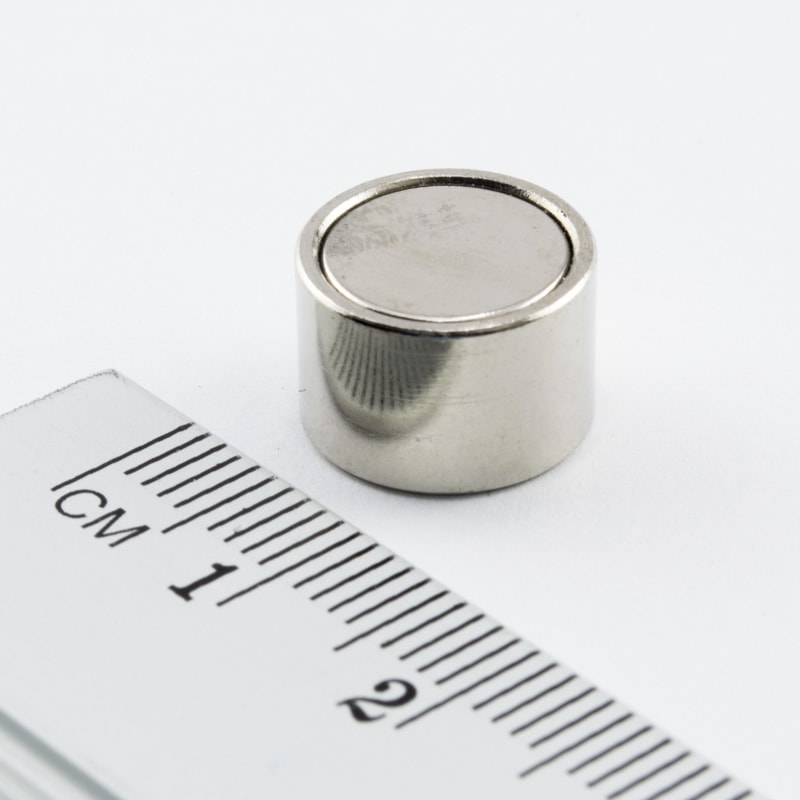

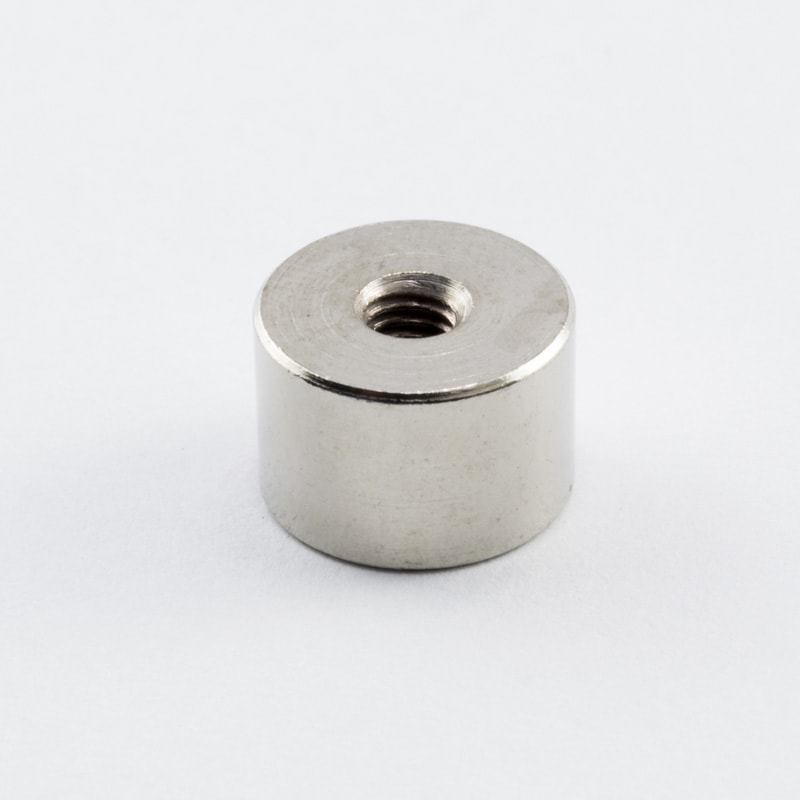

Pot magnet with internal thread, 12×8 mm
1,56€ inc. Vat
Quantity discounts
| From 1 pc: | 1,56€ |
| From 10 pcs: | 1,32€ |
| From 50 pcs: | 1,16€ |
| From 150 pcs: | 1,06€ |
| From 500 pcs: | Request a quote |
Properties
| Diameter | 12 mm |
|---|---|
| Height | 8 mm |
| Thread | M4 |
| Magnetic strength | 4 kg |
| Material | neodymium N38 + steel |
| Surface | three layers: nickel-copper-nickel |
| Temperature resistance | up to 80 °C |
| Weight | 7 g |
Product description
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.
Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
