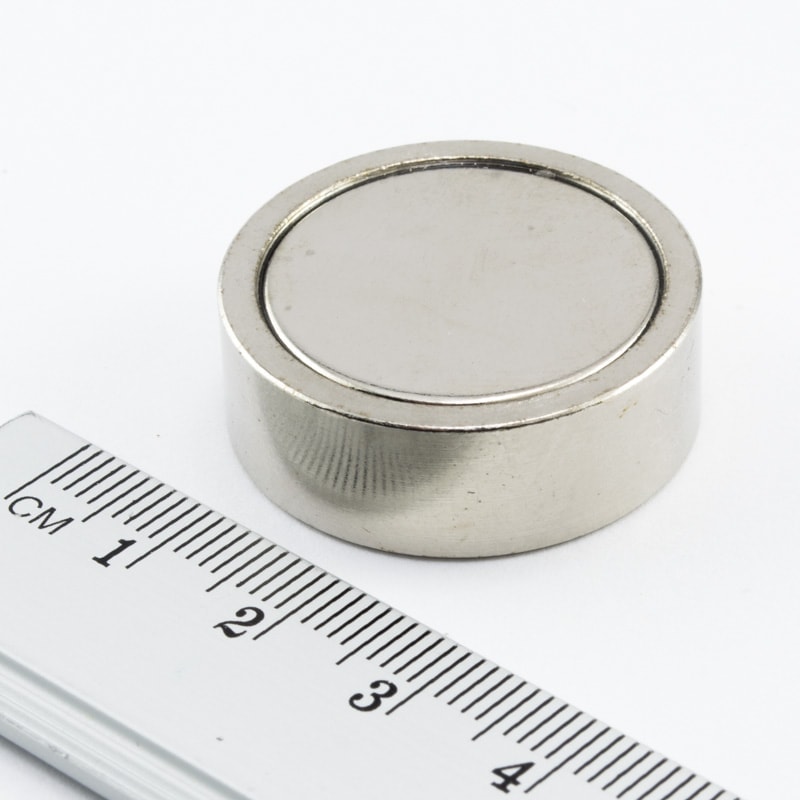

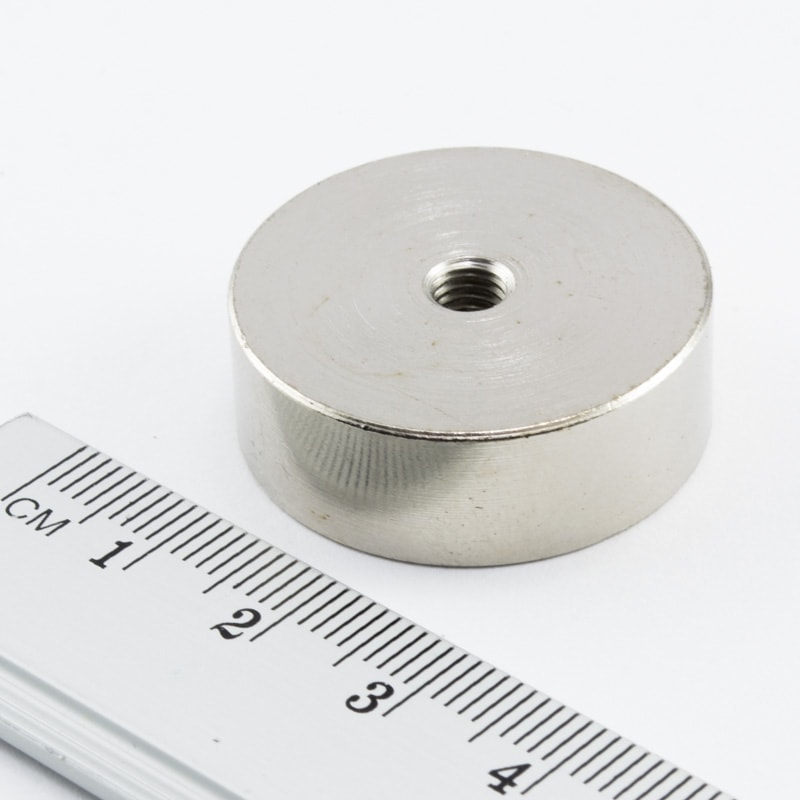

Pot magnet with internal thread, 29x10 mm

Pot magnet with internal thread, 29×10 mm

4,62€ inc. Vat

Quantity discounts

From 1 pc:	4,62€
From 5 pcs:	4,09€
From 15 pcs:	3,71€
From 25 pcs:	3,50€
From 100 pcs:	Request a quote

In stock: 651 pcs

SKU: QL29X10-M5-N38 Category: Pot magnets with internal thread

Properties

Diameter	29 mm
Height	10 mm
Thread	M5
Magnetic strength	35 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	50 g

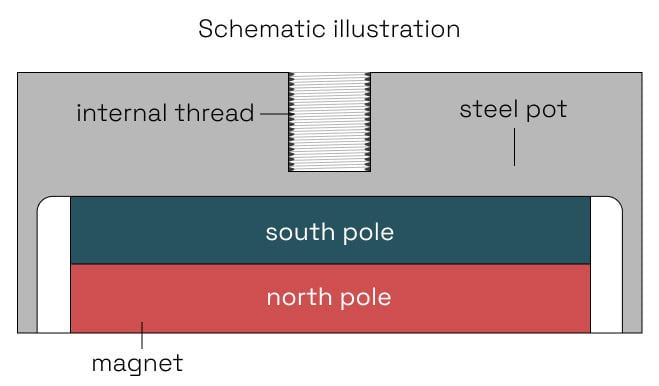

schematic illustration-pot magnet with the internal thread

Product description

The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.

Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
