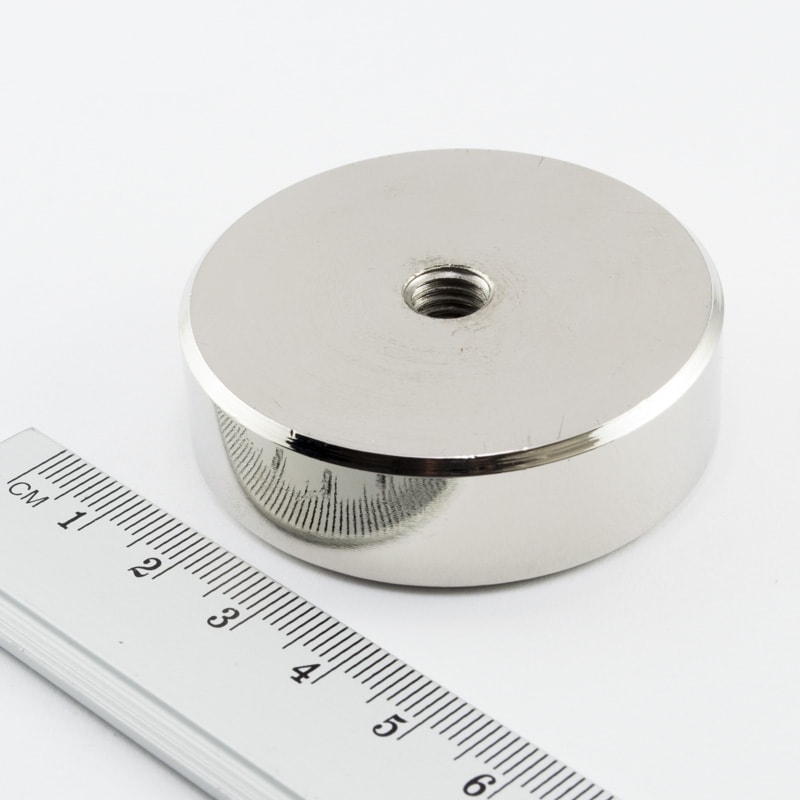

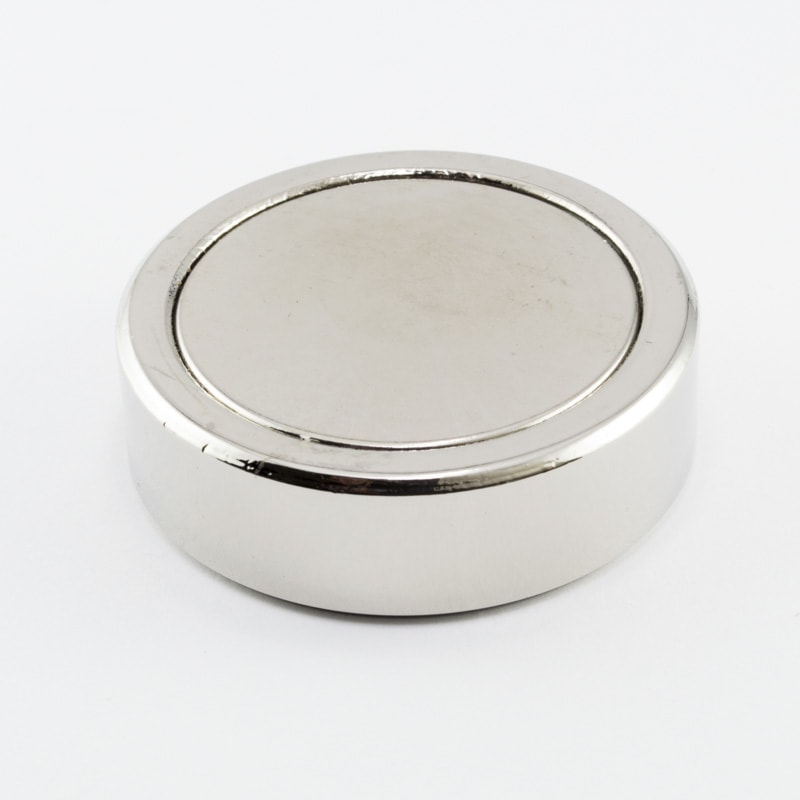

Pot magnet with internal thread, 50x15 mm

Pot magnet with internal thread, 50×15 mm

13,99€ inc. Vat

Quantity discounts

From 1 pc:	13,99€
From 2 pcs:	12,98€
From 5 pcs:	11,97€
From 15 pcs:	11,52€
From 40 pcs:	Request a quote

In stock: 510 pcs

SKU: QL50X15-M8-N38 Category: Pot magnets with internal thread

Properties

Diameter	50 mm
Height	15 mm
Thread	M8
Magnetic strength	145 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	220 g

schematic illustration-pot magnet with the internal thread

Product description

The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.

Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
