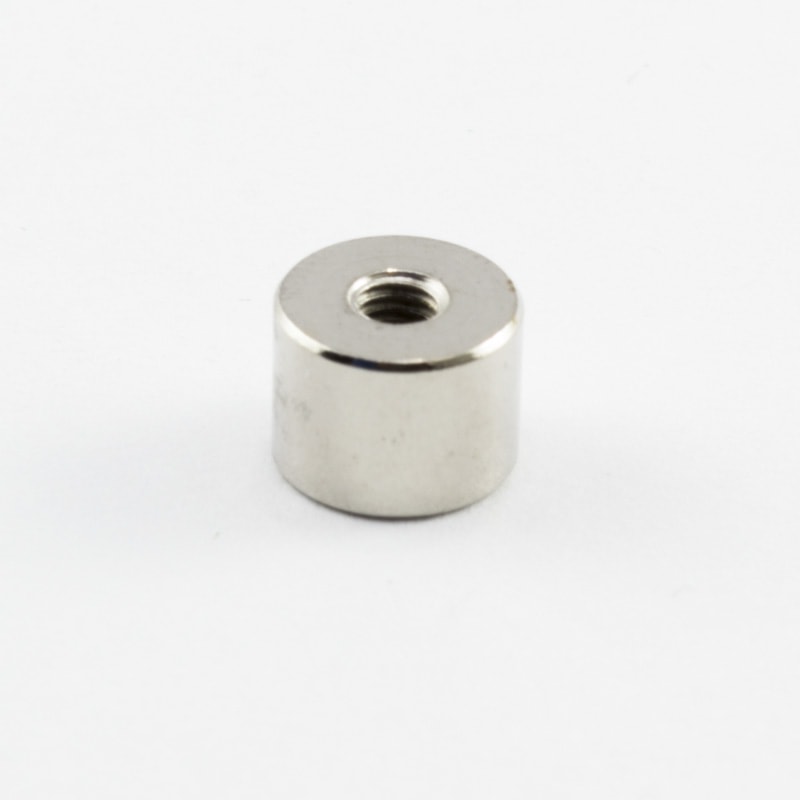

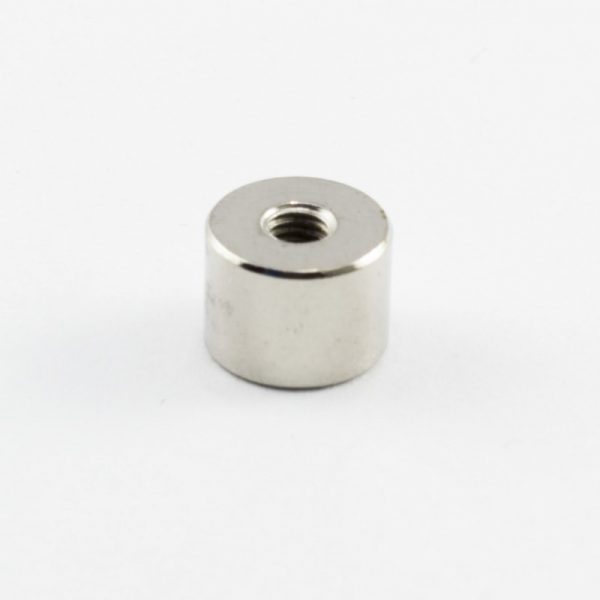

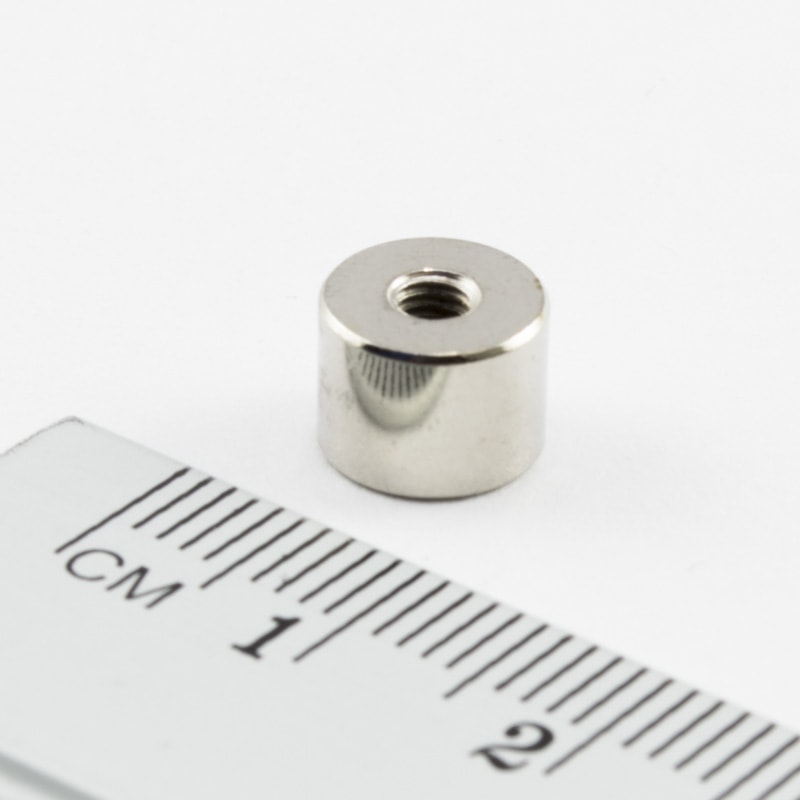

Pot magnet with internal thread, 8x6 mm
Pot magnet with internal thread, 8x6 mm
logo of the online store selling magnets - orodian

Pot magnet with internal thread, 8×6 mm

0,63€ inc. Vat

Quantity discounts
From 1 pc:0,63€
From 20 pcs: 0,56€
From 100 pcs: 0,49€
From 300 pcs: 0,45€
From 1000 pcs: Request a quote
In stock: 2471 pcs

SKU: QL8X6-M3-N38 Category:

Properties

Diameter

8 mm
Height

6 mm
Thread

M3
Magnetic strength

2 kg
Material

neodymium N38 + steel
Surface

three layers: nickel-copper-nickel
Temperature resistance

up to 80 °C
Weight

2,1 g
schematic illustration-pot magnet with the internal thread

Product description

The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.

Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
