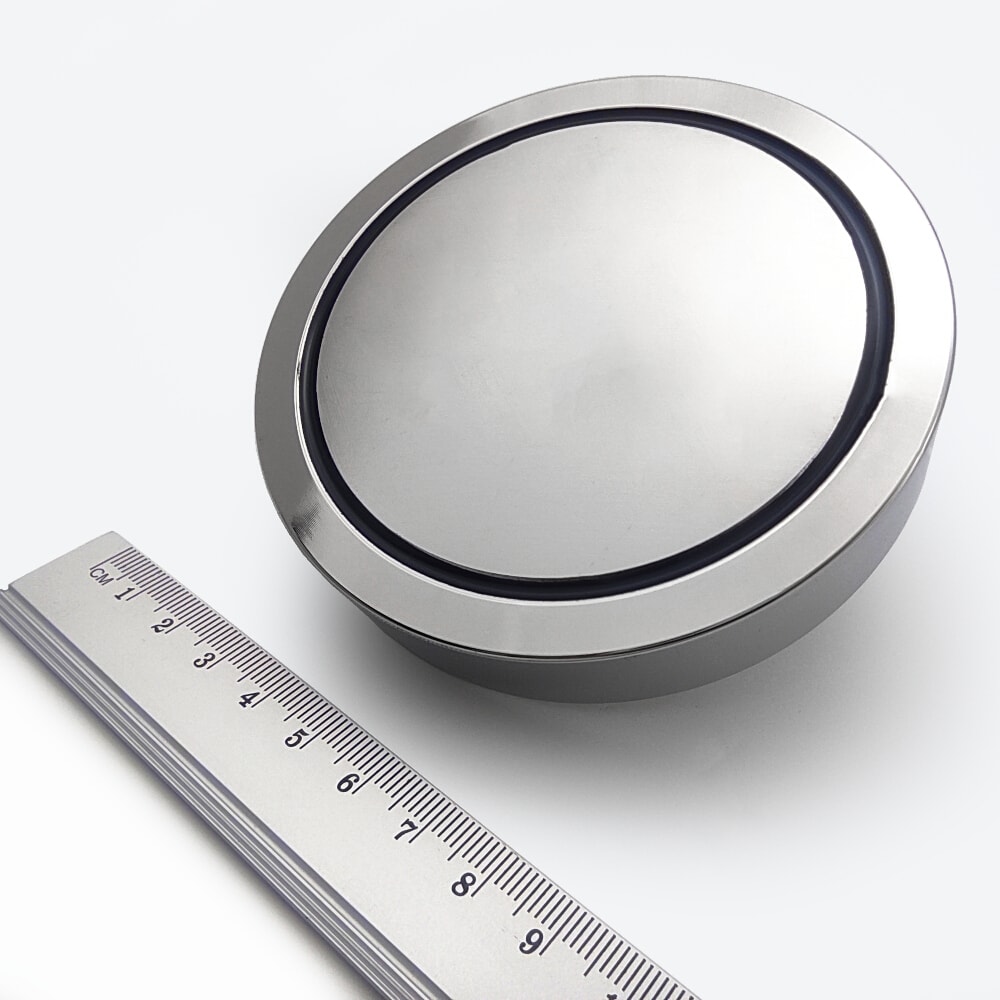

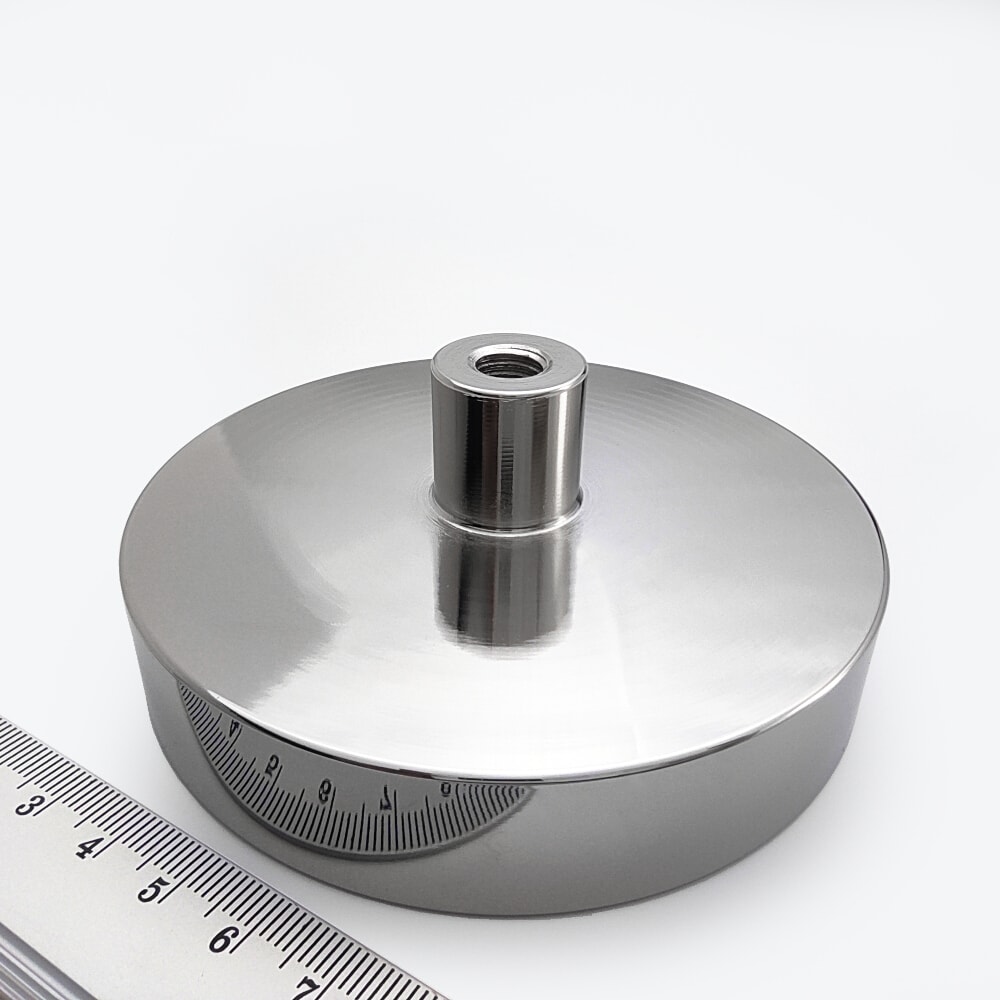

Pot magnet with internal thread socket, 100×20 mm

65,99€ inc. Vat

Quantity discounts

From 1 pc:	65,99€
From 2 pcs:	61,89€
From 5 pcs:	58,69€
From 10 pcs:	57,49€
From 20 pcs:	Request a quote

In stock: 700 pcs

SKU: D100L-M10-N38-NI Category: Pot magnets with internal thread socket Tags: Large magnets, The strongest magnets

Properties

Diameter	100 mm
Height	20 mm
Height with thread	40 mm
Thread	M10
Magnetic strength	530 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	1,2 kg

pot magnet with internal thread socket-illustration

Product description

The magnet height is 20 mm, the total height including the threaded section is 40 mm.

The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.

Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
