Properties

Diameter	25 mm
Height	8 mm
Hole size	M5
Magnetic strength	19 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	24 g

Product description

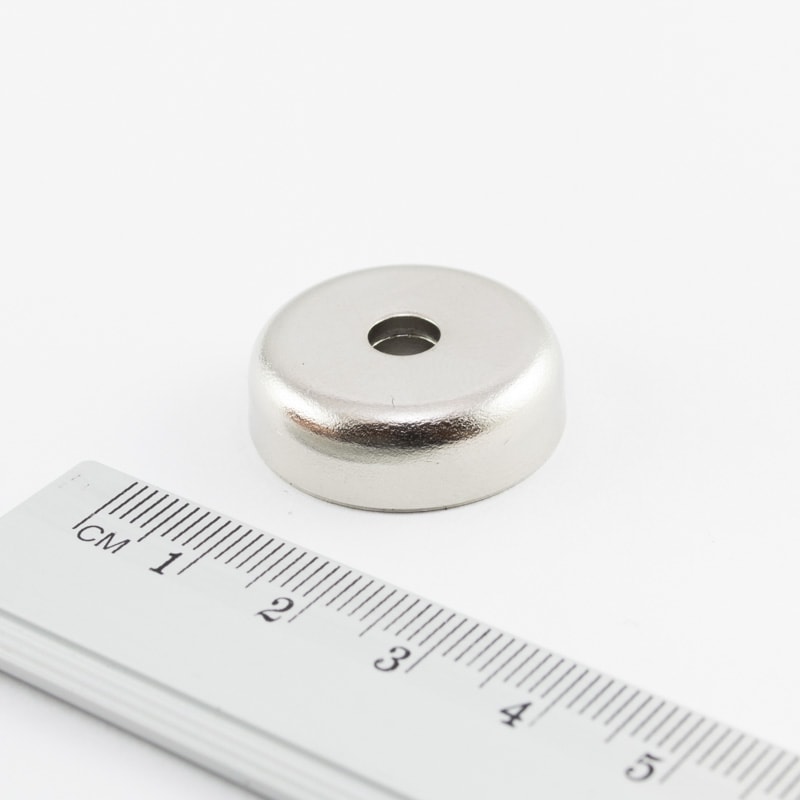

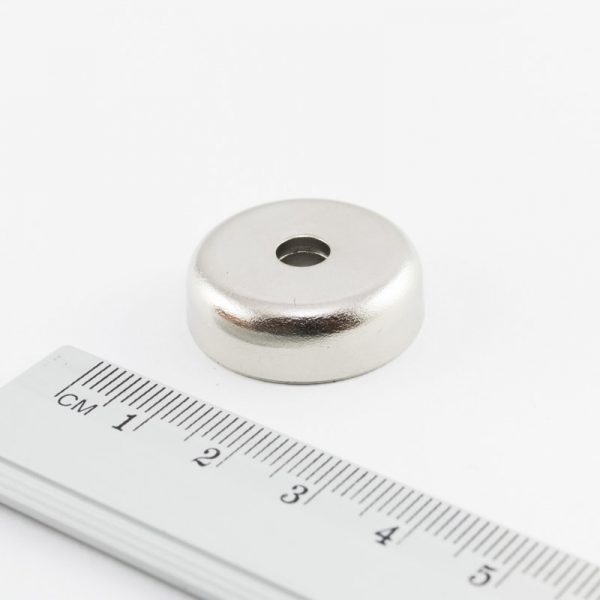

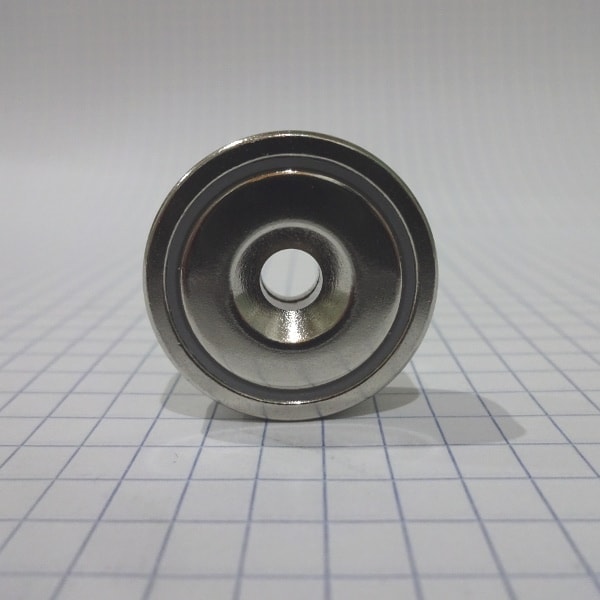

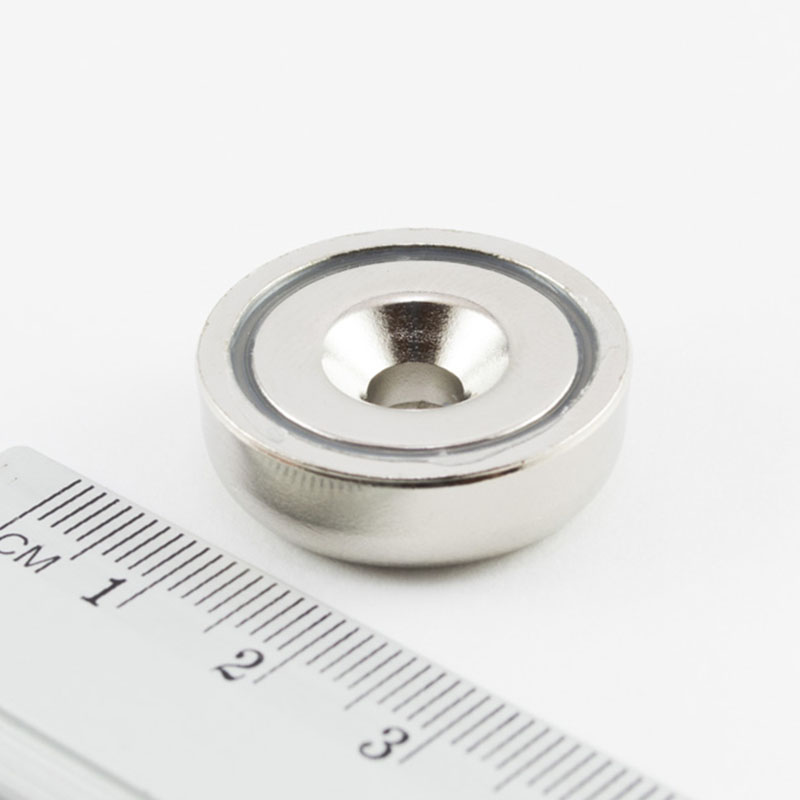

Magnetic mount with hole in the centre for M5 screw. The mount consists of a neodymium magnet and a steel cylinder, which concentrates the entire force of the magnet into a small space on one side of the magnet. Thanks to this, the mount can hold even very heavy objects and is suitable as both a vertical and horizontal magnetic holder. Since all the magnetism is concentrated on the surface of the active side of the mount, the force drops off sharply with distance and the mounts have almost no effect on more distant objects. The back of the mount is not magnetic.

Under ideal conditions, a 25×8 mount can hold 19 kg of steel if it is at least 8 mm thick, touches the mount with its entire surface and hangs from it (i.e. the active side of the mount points vertically downwards and attracts the steel object upwards). It takes much less force to slide a metal object off a mount than to pull it off. If the mount fixed to the wall (and not to the ceiling) and objects are placed on it from the side, it can hold 9.4 kg.

To increase the strength of this anti-slip mount or to protect more sensitive materials against scratches, you can slide on a rubber protective cap from our range onto the magnet.

All mounts have the north pole on the active side (thus they repel each other).
