Properties

Diameter	32 mm
Height	8 mm
Hole size	M5
Magnetic strength	30 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	40 g

Product description

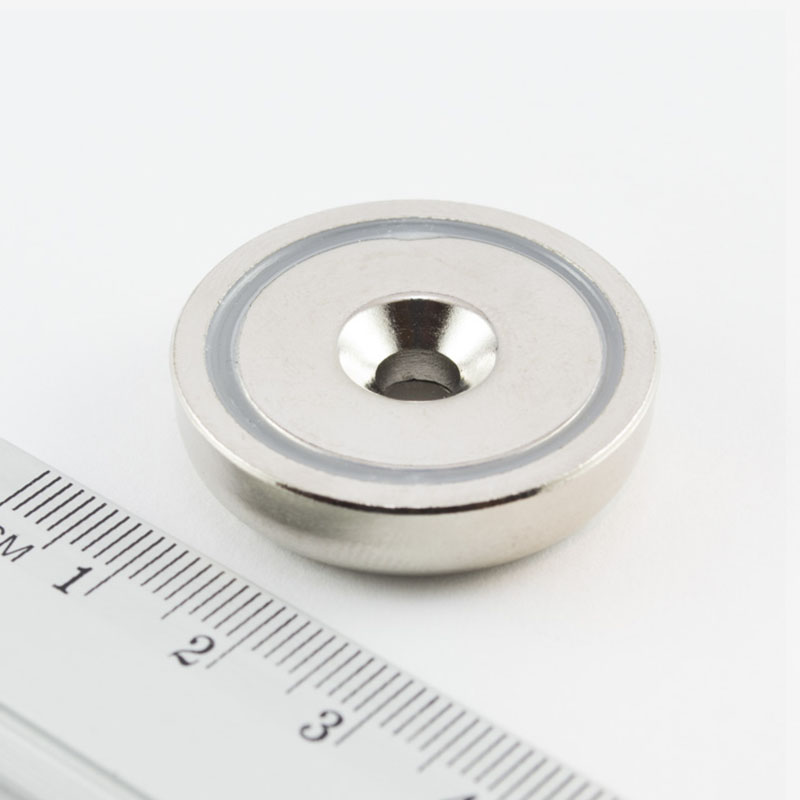

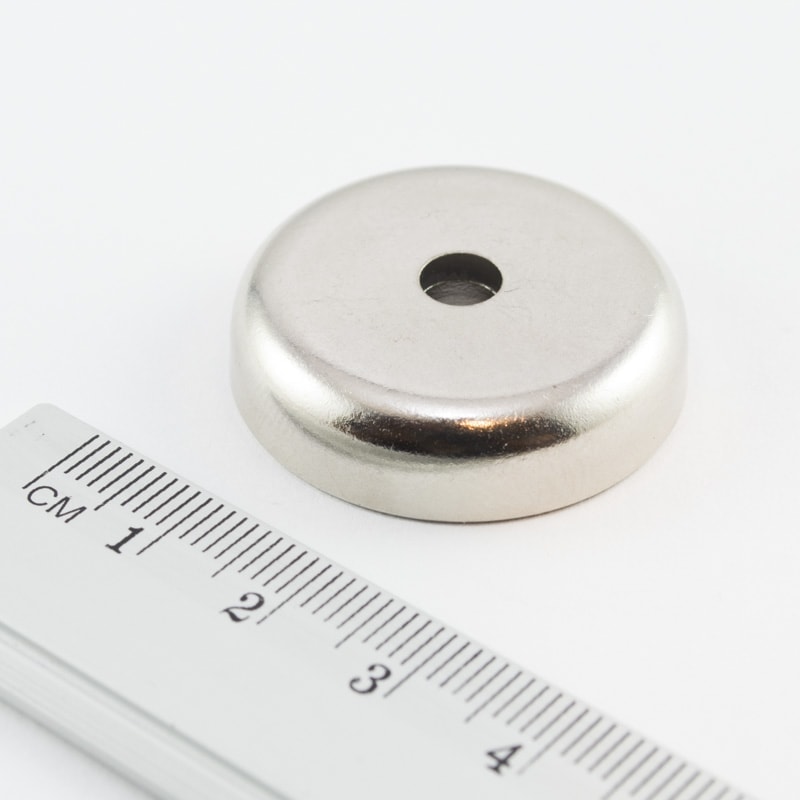

Magnetic mount with M5 screw hole in centre. The mount consists of a neodymium magnet and a steel cylinder concentrating all the magnetic force into a small space on one side of the magnet. Thanks to this, the mount can hold even very heavy objects and is suitable as both a vertical and horizontal holder. Since all the magnetism is concentrated on the surface of the active side of the mount, the force drops off sharply with distance and the mounts have almost no effect on more distant objects. The back of the mount is not magnetic.

Under ideal conditions, a 32×8 mount can hold 30 kg of steel if it is at least 8 mm thick, touches the mount with its entire surface and hangs from it (i.e. the active side of the mount points vertically downwards and attracts the steel object upwards). It takes much less force to slide a metal object off a mount than to pull it off. If the mount fixed to the wall (and not the ceiling) and objects are placed on it from the side, it can hold 15 kg.

All mounts have the north pole on the active side (thus they repel each other).
