Properties

Diameter	40 mm
Height	8 mm
Hole size	M5
Magnetic strength	20 kg
Material	ferrite Y30 + steel
Surface	magnet without surface treatment, galvanized steel pot
Temperature resistance	up to 250 °C
Weight	51 g

Product description

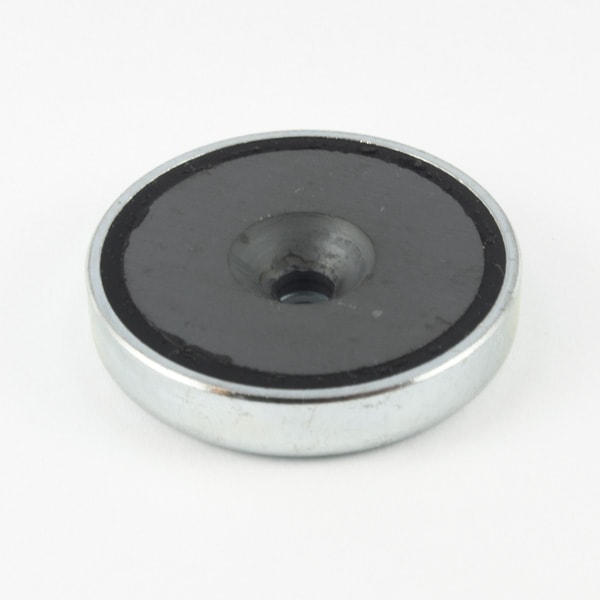

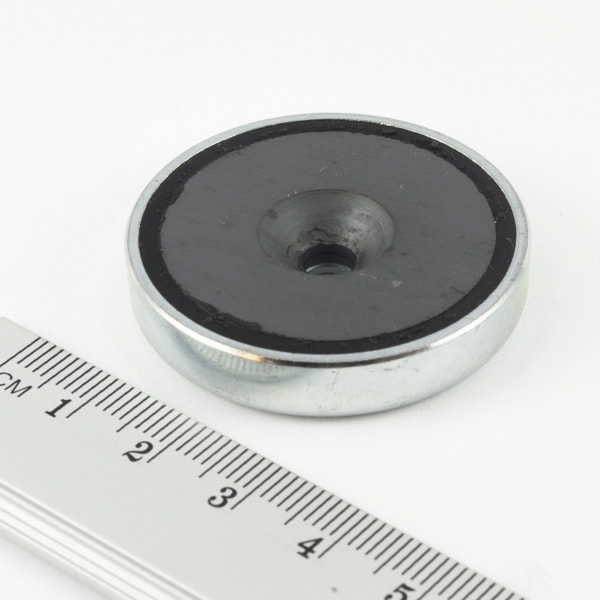

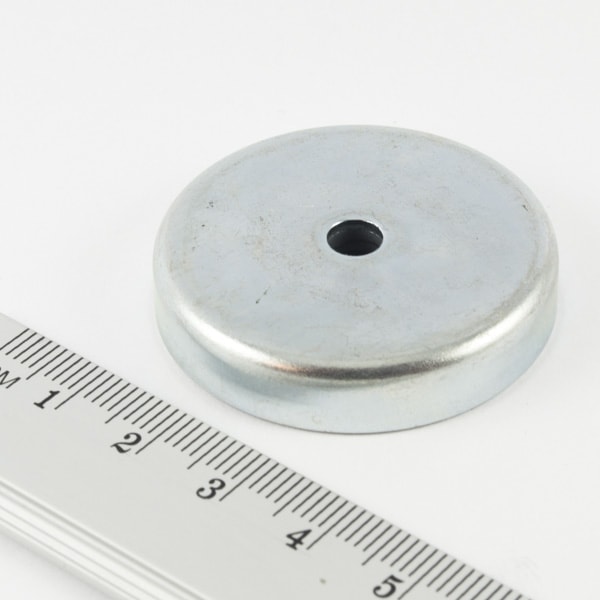

Magnetic mount with hole in the centre for M5 screw. The mount consists of a ferrite magnet and a steel cylinder, which concentrates the entire force of the magnet into a small space on one side of the magnet. Thanks to this, the mount can hold even very heavy objects and is suitable as both a vertical and horizontal magnetic holder. Since all the magnetism is concentrated on the surface of the active side of the mount, the force drops off sharply with distance and the mounts have almost no effect on more distant objects. The back of the mount is not magnetic.

Under ideal conditions, a 40×8 mm ferrite mount can hold 20 kg of steel if it is at least 8 mm thick, touches the mount with its entire surface and hangs from it (i.e. the active side of the mount points vertically downwards and attracts the steel object upwards). It takes much less force to slide a metal object off a mount than to pull it off. If the mount fixed to the wall (and not the ceiling) and objects are placed on it from the side, it can hold 10 kg.

All of our magnets in the pot have the north pole on the active side (so they repel each other).
