Properties

Length	80 mm
Width	20 mm
Height	4 mm
Holes size	M4
Magnetic strength	37 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	44 g

Product description

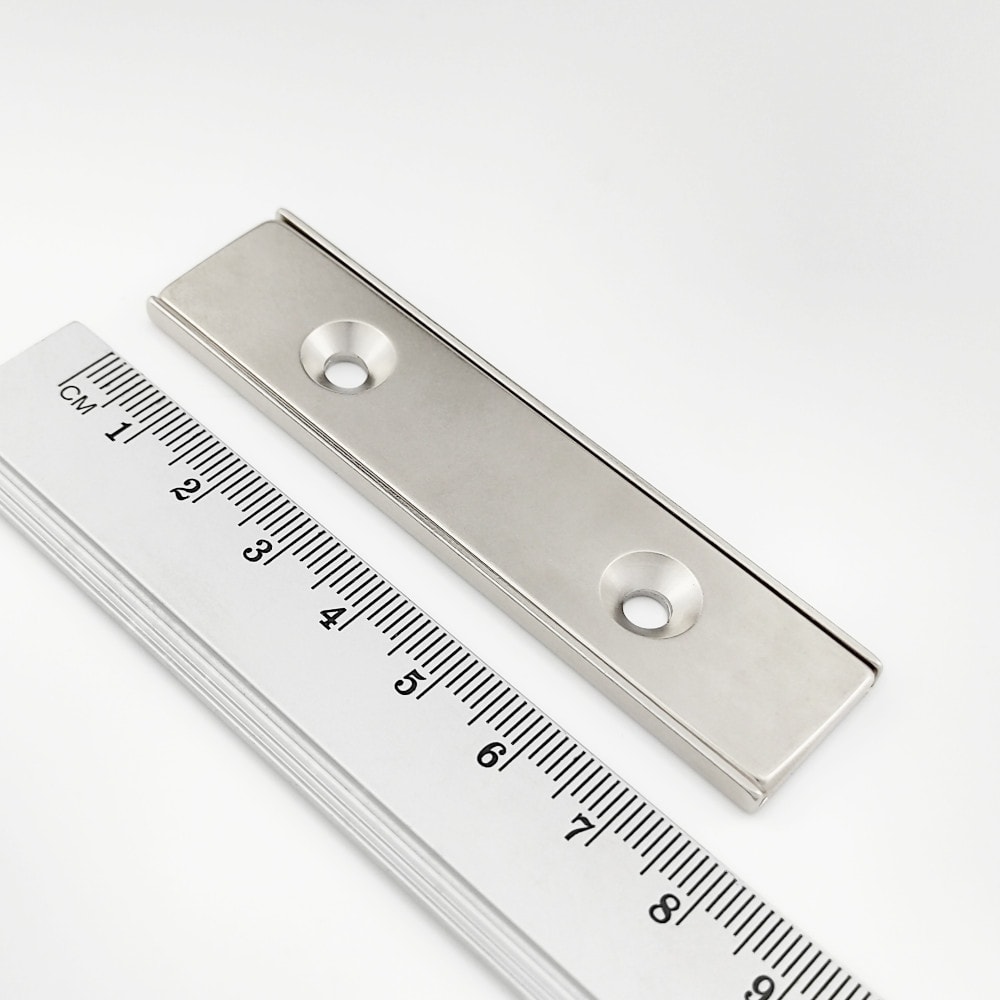

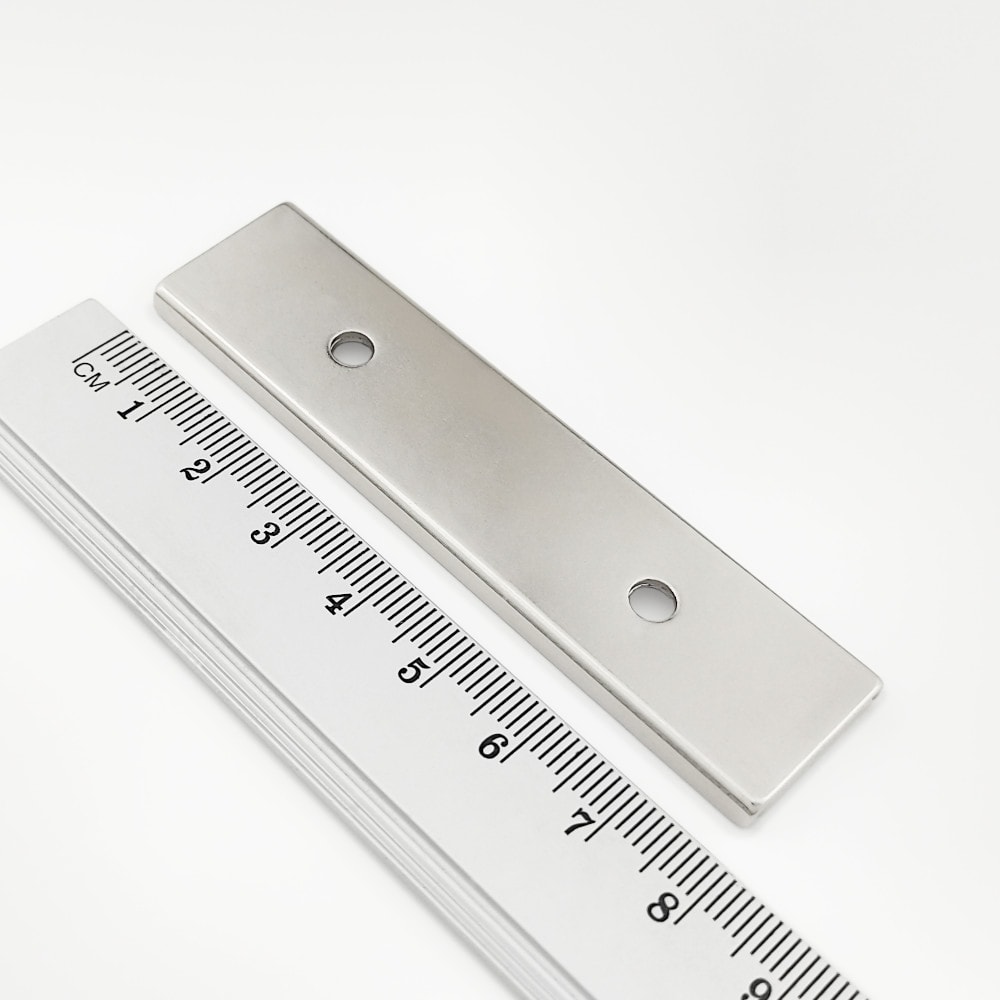

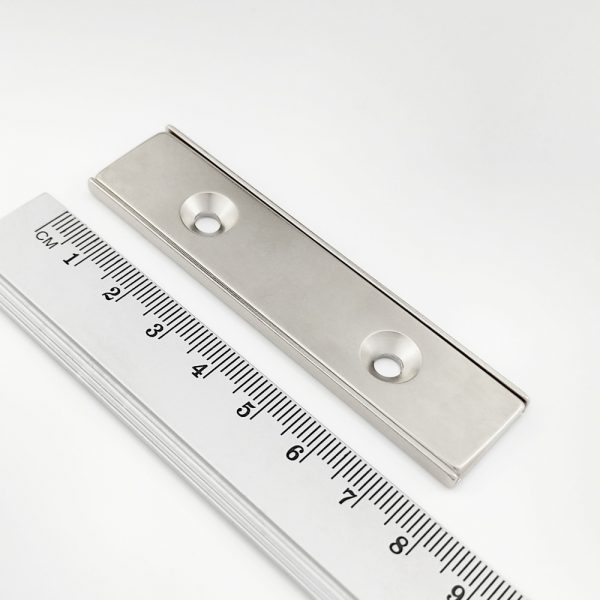

Magnetic mount with holes for M4 screw. The mount consists of a neodymium magnet and a steel pot that concentrates the magnetic force into a small space on one side of the magnet. Thanks to this, the mount can also hold heavier objects and is suitable as both a vertical and horizontal holder. Since all the magnetism is concentrated on the surface of the active side of the mount, the force drops off sharply with distance and the mounts have almost no effect on more distant objects. The back of the mount is only very weakly magnetic.

Under ideal conditions, an 80x20x4 mount can hold appr. 37 kg of steel if it is at least 4 mm thick, touches the mount with its entire surface and hangs from it (i.e. the mount points the active side vertically downwards and pulls the steel object upwards).). It takes much less force to slide a metal object off a mount than to pull it off. If the mount is fixed to the wall (not the ceiling) and objects are placed on it from the side, it can hold 7.5 kg.

All mounts have the north pole on the active side (thus they repel each other).
