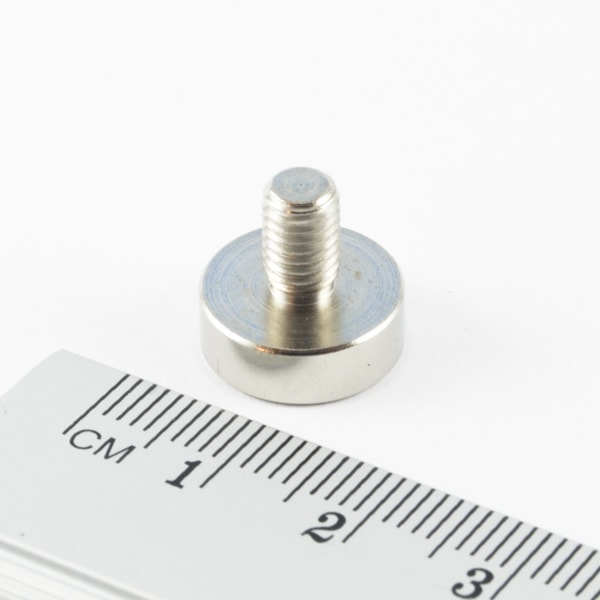

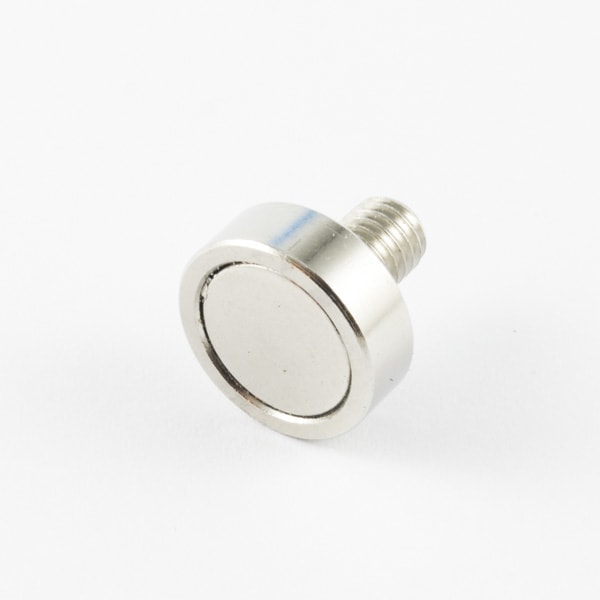

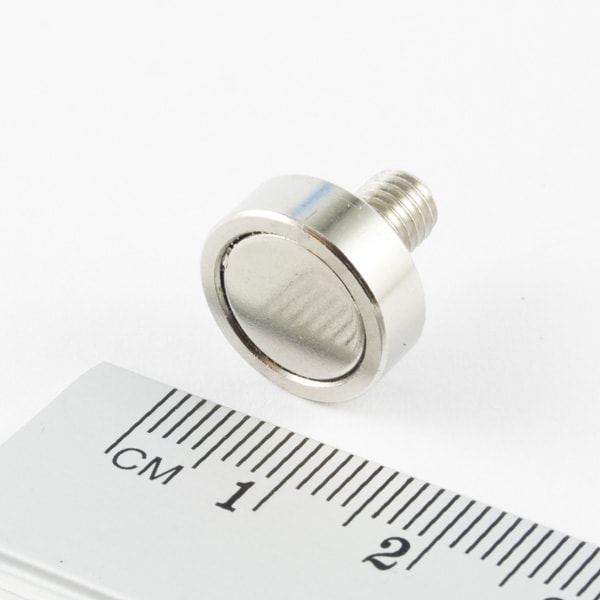

Pot magnet with threaded stud, 13x4.5 mm, Zn

Pot magnet with threaded stud, 13×4.5 mm

1,51€ inc. Vat

Quantity discounts

From 1 pc:	1,51€
From 20 pcs:	1,25€
From 50 pcs:	1,12€
From 100 pcs:	1,03€
From 500 pcs:	Request a quote

In stock: 4942 pcs

SKU: CL13X4.5-12.5-M5-N38 Category: Pot magnets with threaded stud

Properties

Diameter	13 mm
Height	4,5 mm
Height with thread	12,5 mm
Thread	M5
Magnetic strength	3,5 kg
Material	neodymium N38 + steel
Surface	three layers: nickel-copper-nickel
Temperature resistance	up to 80 °C
Weight	4 g

schematic illustration-pot magnet with the external thread

Product description

The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall magnetic strength.
