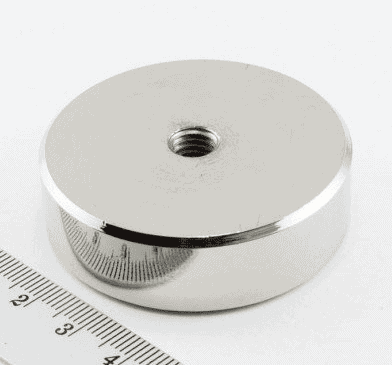

Pot magnet with internal thread, 50×20 mm
18,99€ inc. Vat
Out of stockProperties
| Diameter | 50 mm |
|---|---|
| Height | 20 mm |
| Thread | M8 |
| Magnetic strength | 160 kg |
| Material | neodymium N38 + steel |
| Surface | galvanized (Zn) |
| Temperature resistance | up to 80 °C |
| Weight | 295 g |
Product description
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force.
Together with the steel cylinder, the magnet acts like a large magnetic lens, concentrating all its force into a small space on the magnet’s surface. Thanks to this, the magnet has a greater breakaway force than standard neodymium magnets of similar dimensions without a cylinder.
