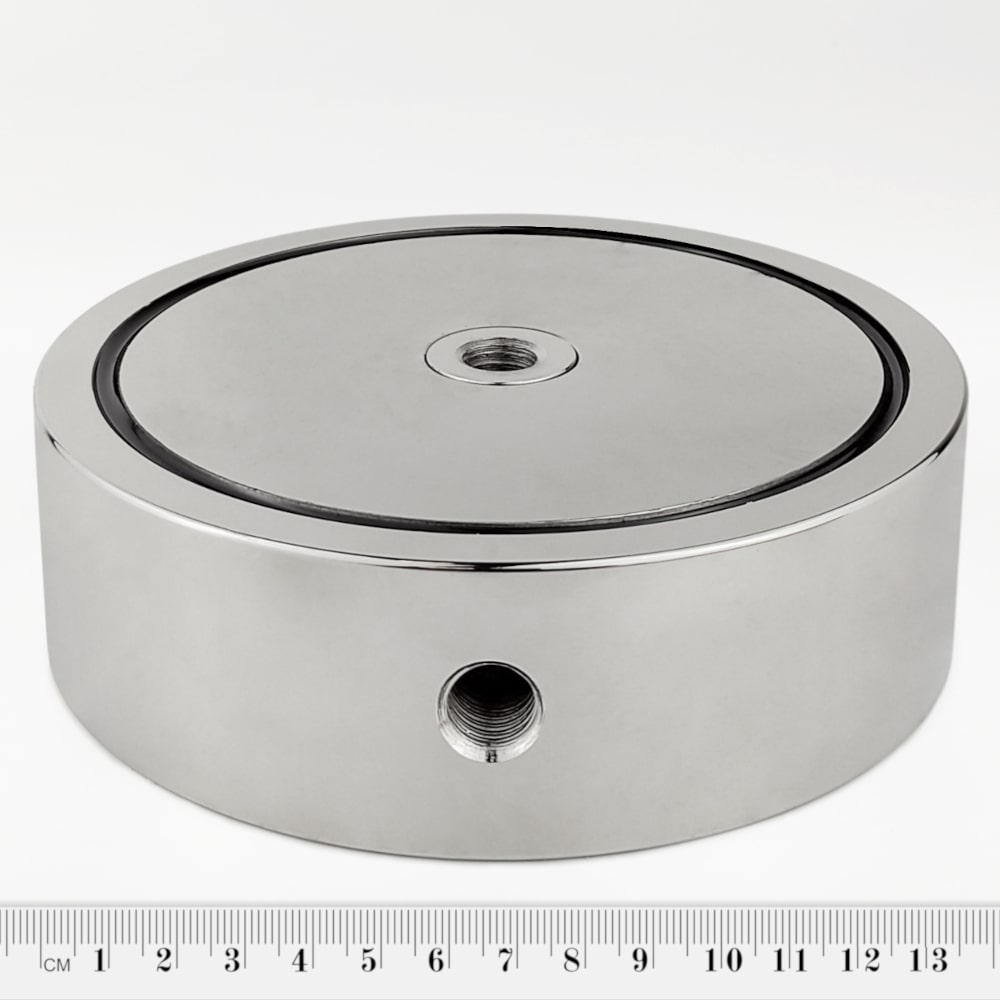

Pot magnet with internal thread through entire magnet, 135×40 mm, double-sided
179,99€ inc. Vat
Quantity discounts
| From 1 pc: | 179,99€ |
| From 2 pcs: | 173,99€ |
| From 5 pcs: | 169,99€ |
| From 10 pcs: | 164,99€ |
| From 20 pcs: | Request a quote |
Properties
| Diameter | 135 mm |
|---|---|
| Height | 40 mm |
| Thread | M12 |
| Magnetic strength | 1,100 kg |
| Material | neodymium N38 + steel |
| Surface | three layers: nickel-copper-nickel |
| Temperature resistance | up to 80 °C |
| Weight | 4,18 kg |
Product description
Unlike our other threaded magnets, this magnet attracts from both sides. There are two threads in the magnet for the M12 screw: one runs through entire magnet in the direction of the axis and the other runs from the side to the centre of the magnet.
The inner magnet is made of the world’s strongest magnetic material NdFeB. It is embedded in a steel structure that protects the magnet from damage while increasing its overall breakaway force. Under ideal conditions, the magnet can hold up to 1,100 kg of steel.
